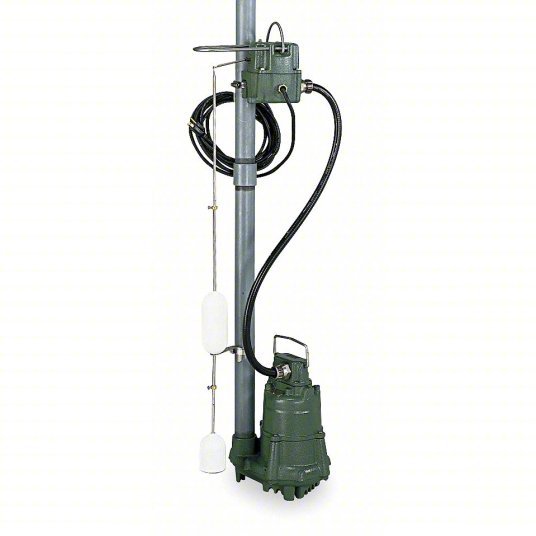

Zoeller M3098 High-Temperature Submersible Sump Pump 1/2, Vertical Float, 200°F Max. Liquid Temp.

UPC: 053514036188 | Harmonization / Schedule B : 8413.70.2004

Country of Origin: United States | Shipping Weight: 56.35 lbs

$1,678.00 - $1,678.00
$1,678.00
$1,678.00 - $1,678.00
$1,678.00
High-Temperature Submersible Sump Pump, HP 1/2, Rated Voltage 115V AC, Hz 60 Hz, Amps 9.4 A, Switch Actuation Vertical Float, Switch Electrical Connection Integral, Off Point 3 in, On Point 12 in, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Viton, Flow Rate @ 5 Ft. of Head 66.0 gpm, Flow Rate @ 10 Ft. of Head 56 gpm, Flow Rate @ 15 Ft. of Head 41.0 gpm, Flow Rate @ 20 Ft. of Head 23.0 gpm, Max. Head 21 ft, Min. Sump Pit Dia. 18 in, Body Dia. 11 in
Discharge NPT 1-1/2" F
Housing Material Cast iron
HP 1/2
Hz 60 Hz
Impeller Material Cast Iron
Includes Check valve
Max. Head 21 ft
Max. Temp. 200 Degrees F
Motor RPM 1725/3450
Motor Type PSC
Shaft Seal Viton(R)
Voltage 115
Pump HP 1/2
On Point 12 in
Item High-Temperature Submersible Sump Pump
Impeller Material - Pumps Cast Iron
Max. Liquid Temp. 200 Degrees F
Amps 9.4 A
GPM of Water @ 15 Ft. of Head 41
Mechanical Seal Viton(R)
Switch Type - Pumps Float
Off Point 3 in
Thermal Protection Yes
Base Material Cast Iron
Features High Temperature Liquid-Tight Conduit Used with High Temperature Cable, High Temperature Motor Windings, All Models Have Stainless Steel Screws, Guards, Handles and Control Arm and Seal Assemblies
GPM of Water @ 5 Ft. of Head 66
Alarm Included No
Pump Body Material Cast Iron
Alarm No
GPM of Water @ 10 Ft. of Head 56
Switch Type Mechanical
GPM of Water @ 20 Ft. of Head 23
Voltage - Pumps 120VAC
Gauge/Conductor 16/4
Amps - Pumps 9.40
Item - Sump Pumps Submersible Sump Pump
Shaft Seal Material - Pumps Viton
NEC Cord Designation SOW
Max. Head - Pumps 21 ft.
Switch Actuation Vertical Float
Duty Cycle Continuous
Discharge Standard NPT
Discharge Gender Female
Discharge 1-1/2 in FNPT
Body Material Cast Iron
Flow Rate @ 10 Ft. of Head 56 gpm
Flow Rate @ 20 Ft. of Head 23.0 gpm
Flow Rate @ 15 Ft. of Head 41.0 gpm
Flow Rate @ 5 Ft. of Head 66.0 gpm
Rated Voltage 115V AC
Switch Electrical Connection Integral
