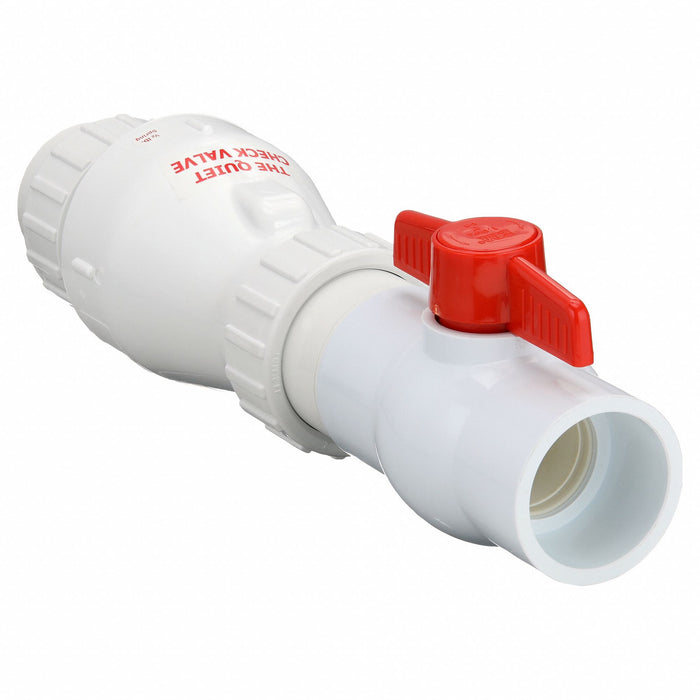

Zoeller 30-0236 Silent Combo Swing Check Valve 2 in PVC

Zoeller 30-0236 Check Valve with Ball Valve, Swing, Inline Valve Body, 2 in Pipe Size, For Water Media, PVC

UPC: 053514308377 | Harmonization / Schedule B : 8413.19.0000

Country of Origin: United States | Shipping Weight: 4.7 lbs

$75.90 - $75.90
$75.90
$75.90 - $75.90
$75.90

PVC (polyvinyl chloride) combination silent spring-loaded swing check and ball valves are made from a corrosion- and chemical-resistant plastic resin. Silent spring-loaded check valves prevent sharp increases in system pressure, also known as water hammer. These units have a ball valve connected to the outlet to stop and start media flow traveling through the valve for maintenance or if the swing check valve fails.

Check Mechanism Swing
Valve Body Style Inline
Pipe Size 2 in
For Media Water
Body Material PVC
Connection Type Socket x Socket
Connection Size - Side 1 2 in
Connection Gender - Side 1 Female
Connection Size - Side 2 2 in
Connection Gender - Side 2 Female
Max. Pressure (CWP) 50 psi
Cracking Pressure 1 psi
Media Temp. Range 75 °F to 130 °F
Mounting Orientation Horizontal, Vertical
Silent Check Silent
Seat Material PVC
Seal Material Rubber
Disc Material PVC
Spring Material Stainless Steel
Height - Cap to Inlet Center 3-1/2 in
Overall Length 16.13 in
Includes Counterweight Counterweight Included
