Wright 18H90 Striking Face Box Wrench Steel, Orange, 4 5/8 in Head Size, 15 in Overall Lg - KVM Tools Inc.KV825P25

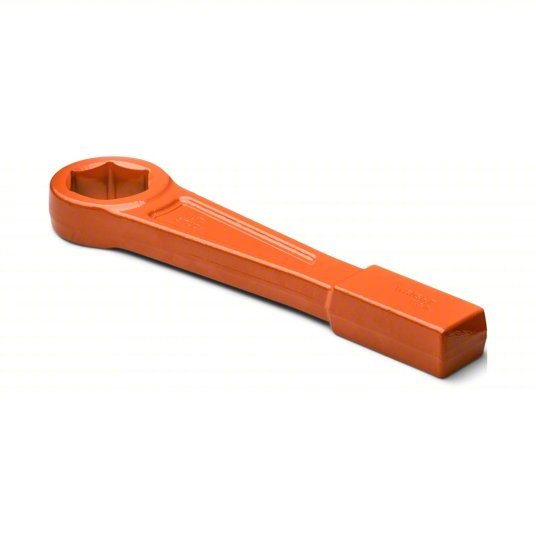

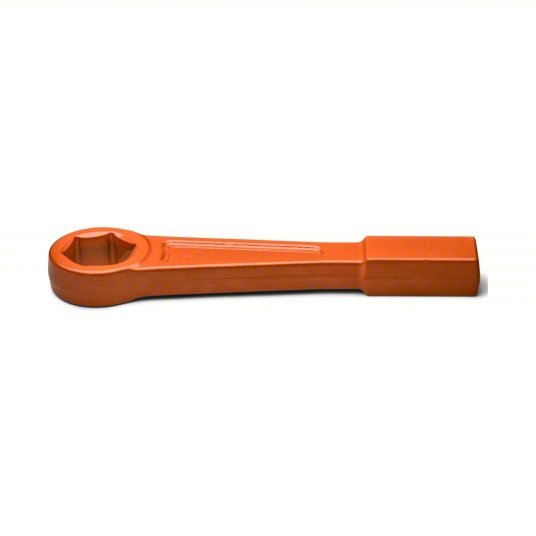

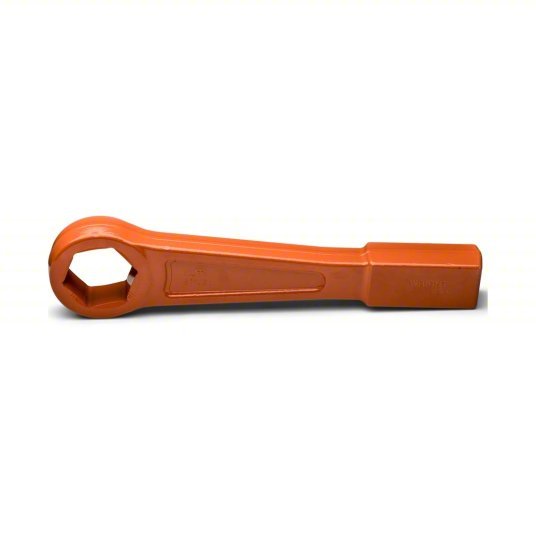

Wright 18H90 Striking Face Box Wrench Steel, Orange, 4 5/8 in Head Size, 15 in Overall Lg

UPC: 076799771346 | Harmonization / Schedule B : 8204.11.0030

Country of Origin: United States | Shipping Weight: 9.66 lbs

$402.26 - $402.26
$402.26
$402.26 - $402.26
$402.26

Striking box-end wrenches have a 6-pt. design that allows more contact with the fastener's sides than the 12-pt. style and prevents rounding the fastener's corners. A block shape on one end of the handle is struck with a hammer to loosen or tighten a fastener. The opposite end has an enclosed head end (box end) that fits around the entire head of the fastener for a more secure grip while turning compared to an open end. Wrenches have a straight handle and are SAE (inch) size.

Straight Handle Striking Face Box Wrenches 6 Pt.

Part Number Box End Configuration Pattern SAE or Metric Coating Length Nut Size Stud Size Box End Diameter Box End Thickness
18H34 6 Pt Straight SAE Orange 10-1/2" 1-1/16" 5/8" 1-7/8" 3/4"
18H40 6 Pt Straight SAE Orange 11" 1-1/4" 3/4" 2-1/8" 3/4"
18H46 6 Pt Straight SAE Orange 11-1/2" 1-7/16" 7/8" 2-1/2" 29/32"
18H52 6 Pt Straight SAE Orange 12-1/2" 1-5/8" 1" 2-5/8" 1-1/8"
18H58 6 Pt Straight SAE Orange 13" 1-13/16" 1-1/8" 2-3/4" 1-5/32"
18H64 6 Pt Straight SAE Orange 13-1/2" 2" 1-1/4" 3-1/8" 1-1/4"
18H70 6 Pt Straight SAE Orange 13-3/4" 2-3/16" 1-3/8" 3-3/8" 1-27/64"
18H76 6 Pt Straight SAE Orange 14" 2-3/8" 1-1/2" 3-5/8" 1-9/16"
18H82 6 Pt Straight SAE Orange 14-1/4" 2-9/16" 1-5/8" 3-7/8" 1-5/8"
18H88 6 Pt Straight SAE Orange 14-1/2" 2-3/4" 1-3/4" 4-1/8" 1-5/8"
18H89 6 Pt Straight SAE Orange 14-3/4" 2-15/16" 1-7/8" 4-7/16" 1-45/64"
18H90 6 Pt Straight SAE Orange 15" 3-1/8" 2" 4-5/8" 1-3/4"
18H91 6 Pt Straight SAE Orange 15-1/4" 3-1/2" 2-1/4" 5-1/8" 1-3/4"
18H92 6 Pt Straight SAE Orange 15-1/2" 3-7/8" 2-1/2" 5-5/8" 1-3/4"
