| Connection Location |
Center Back |
| Item |

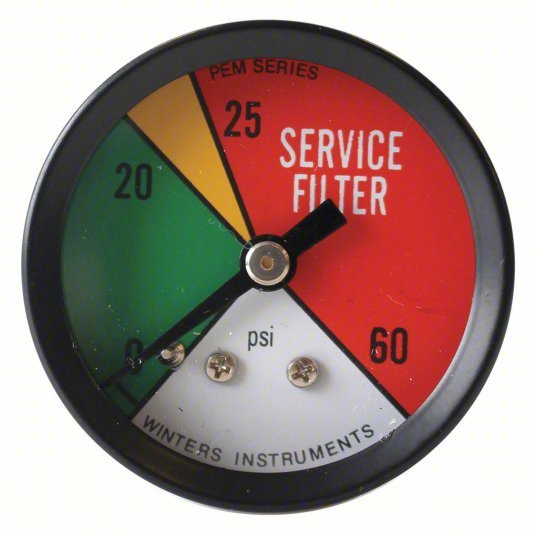

Commercial Pressure Gauge |
| For Use With |
Media Compatible with Bronze |
| Range |
0 to 60 psi |
| Accuracy |
+/-3-2-3% |
| Application |
Air Compressors, HVAC/R, Hydraulics, OEM Applications, Plumbing, Pneumatics, Water Pressure Testing |
| Gauge Primary Range Values |
0 to 60 |
| Gauge Primary Range Units |
psi |
| Gauge Connection Type |
MNPT |
| Case Color |
Black |
| Gauge Sensor Material |
Brass |
| Gauge Case Material |
Steel |
| Gauge Secondary Range Values |
0 to 410 |
| Liquid Filled |
No |
| Socket Material |
Brass |
| Features |
Green, Yellow, Red, psi Zones |
| Calibration Certificate Included |
No |
| Pressure Range |
0 to 60 psi |
| Gauge Primary Range Smallest Graduation |
5/50 |
| Standards |
ANSI/ASME, CRN |
| Gauge Primary Range Numbered Graduations |
10/100 |
| Gauge Case Color |
Black |
| Smallest Graduation |
1 psi/10 kPa |
| Gauge Secondary Range Units |
kPa |
| Process Connection |

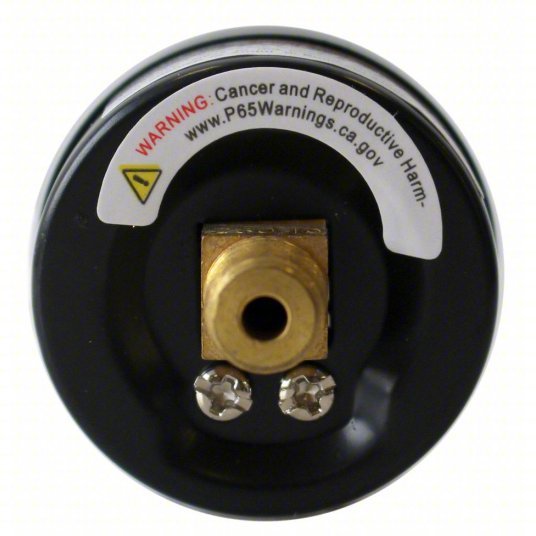

1/8 in NPT Male |
| Case Material |
Steel |
| Gauge Accuracy |
+/-3-2-3% |
| Gauge Connection Location |
Center Back |
| Series |
PEM |
| Gauge Lens Material |
Acrylic |
| Gauge Socket Material |
Brass |
| Operating Temp. Range |
-40 Degrees to 150 Degrees F |
| Includes Mounting Hardware |
No |
| Pressure Range Type |
Pressure |
| Secondary Pressure Range |
0 to 410 |
| Over-Pressure Limit |
25% of Full Scale |
| Primary Units |
psi |
| Case Finish |
Painted |
| Liquid-Filled Case |
No |
| Lens Material |
Acrylic |
| Primary Pressure Range |
0 to 60 |
| Compatible Process Media |
Non-Clogging, Non-Corroding |
| IP/NEMA Rating |
IP52 |
| Sensor Type |
Bourdon Tube |
| Lens Material - Gauge |
Plastic |
| Includes Calibration Certificate |
No |
| Gauge Accuracy Grade |
Grade B - Commercial |
| Primary Scale Units |
psi |
| Case Construction |
Welded Joint |
| Gauge Case Liquid |
None |
| Sensor Material |
Phosphor Bronze |
| Removable Bezel |
No |
| Bezel Material |
Steel |
| Accuracy Scale |
Mid-Scale |
| Vibration Resistance |
None |
| Primary Range |
0 to 60 |
| Includes Vent Plug |
No |
| Field Fillable |
No |
| Dial Color |
Green/Yellow/Red |
| Dry Dampening Feature |
None |
| Panel-Mountable |
No |
| Process Temperature Range |
-40 Degrees to 150 Degrees F |
| Hazardous Location Rating |
Not Rated |
| Secondary Scale Units |
kPa |
| Cleaned for Oxygen Service |
No |
| Pointer Material |
Aluminum |
| Non-Sparking |
No |
| Process Connection Type |
NPT |
| Pressure Gauge Type |
Commercial Pressure Gauge |
| Process Connection Gender |
Male |
| Ambient Operating Temperature Range |
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C |
| Freeze Resistant Movement |
No |
| Process Connection Location |
Center Back |
| Pointer Color |
Black |
| Accuracy Grade |
ASME B40.100 Grade B |
| (Hidden) Merchandised Type |
Commercial Pressure Gauge x Green/Yellow/Red x PEM |
| Compressed Gas Pressure Gauge Type |
Indicating Dial Pressure Gauge |
| Scale Type |
Dual |
| Blowout Safety Back |
No |
| Dial Face Material |
Aluminum |
| Movement Material |
Brass |
| Gauge Wetted Parts |
Brass / Bronze |
