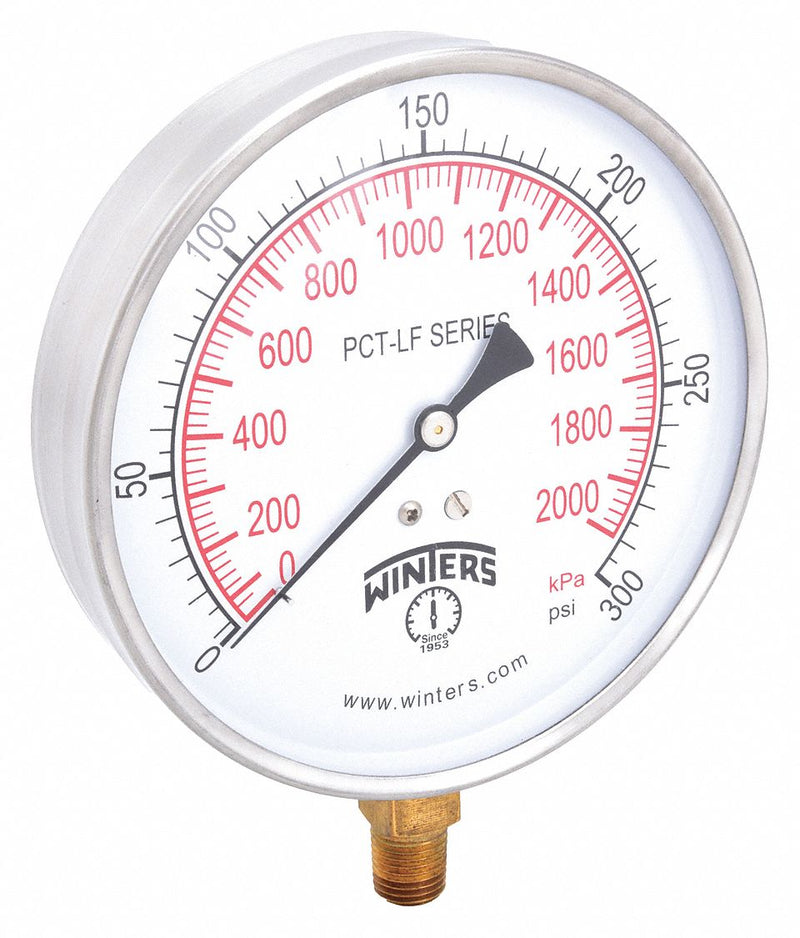

Winters PCT326LF Lead-Free Pressure Gauge

Winters PCT326LF PCT-LF Lead-Free Pressure Gauge, 0-300 psi, 4-1/2 in Dial, 1/4 in NPT Bottom, 304 SS Case, Brass Socket

UPC: 628311250138 | Harmonization / Schedule B : 9031.80.8070

Country of Origin: China | Shipping Weight: 0.79 lbs

$40.27 - $40.27
$40.27
$40.27 - $40.27
$40.27

Pressure Gauge, Accuracy +/-1.0 Percent, Gauge Case Material 304 Stainless Steel, Lens Material Acrylic, Socket Material Brass

Accuracy +/-1.0%
Process Connection Location Bottom
Gauge Case Material 304 Stainless Steel
Series PCT-LF
Lens Material Acrylic
Primary Pressure Range 0 to 300
Primary Scale Units psi
Liquid-Filled Case No
Panel-Mountable No
Calibration Certificate Included No
Gauge Application Most Commercial Air, Water and Steam Services (with Syphon)
Case Color Silver
Characteristics CRN Registered, Zero Adjustment Screw
Gauge Special Options Zero Adjustment Screw
For Use With Most Commercial Air, Water, and Steam Services That Require A 1% Full-Scale Accuracy
Pressure Range 0 to 300 psi/kPa
Socket Material Brass
Case Material 304 Stainless Steel
NSF Certified Yes
Wetted Materials Brass / Bronze
Standards CRN Registered
Connection Type MNPT
Pressure Range Type Pressure Gauge
Sensor Material Bronze
Maximum Pressure 300
Operating Temperature Range -40 Degrees to 200 Degrees F
Country of Origin China
