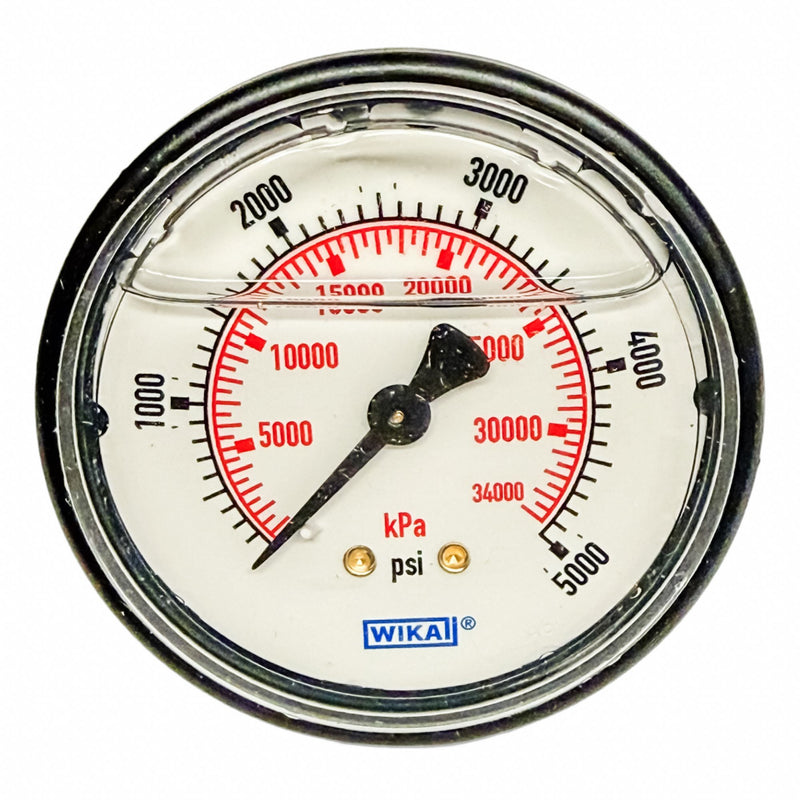

Wika 113.13.25.5000.B Commercial Pressure Gauge, 0 psi to 5,000 psi, 2 1/2 in Dial, 1/4 in NPT Male, Center Back, 4

Wika 113.13.25.5000.B Commercial Pressure Gauge, 0 psi to 5,000 psi, 2 1/2 in Dial, 1/4 in NPT Male, Center Back, 4

UPC: | Harmonization / Schedule B : 9026.20.8000

Country of Origin: United States | Shipping Weight: 0.4 lbs

$57.19 - $57.19
$57.19
$57.19 - $57.19
$57.19

Commercial Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material ABS, Process Connection Type NPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Black, IP/NEMA Rating IP65, Primary Pressure Range 0 to 5,000, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge

Process Connection Size 1/4 in
Dial Size (In.) 2 1/2 in
Manufacturer Warranty Length 1 yr
Nominal Dial Size 2 1/2 in
Case Diameter 62.5 mm
Case Depth 29 mm
Nominal Dial Diameter 2 1/2 in
Accuracy +/-3-2-3%
Process Connection Location Center Back
Process Connection Type NPT
Application Compressors, Hydraulics, Marine, Pumps
Gauge Case Material ABS
Series 113.13
Lens Material Plastic
Primary Pressure Range 0 to 5,000
Primary Scale Units psi
IP/NEMA Rating IP65
Liquid-Filled Case Yes
Hazardous Location Rating Not Rated
Panel-Mountable No
Blowout Safety Back No
Gauge Primary Range Smallest Graduation 100
Required Gauge Adapter 1 yr
For Use With Media Compatible with Bronze
Graduations 1000 psi
Calibration Certificate Included No
Gauge Special Options Heavy Duty
Case Color Black
Gauge Application General-Purpose Case
Characteristics With Brass Internals
Smallest Graduation 100 psi
Gauge Primary Range Numbered Graduations 1000
Gauge Filled With Glycerin
Gauge Secondary Range Values 0 to 10
Case Material ABS
Socket Material Brass
Connection Type MNPT
Standards EN 837-1
Cleaned for Oxygen Service No
Freeze Resistant Movement No
Process Connection Gender Male
Pointer Color Black
Scale Type Single
Non-Sparking No
Pointer Material ABS
Sensor Type Bourdon Tube
Removable Bezel No
Pressure Range Type Pressure
Dry Dampening Feature None
Includes Mounting Hardware No
Primary Scale Numeric Increments 1,000
Gauge Case Liquid Glycerin
Dial Color White
Compatible Process Media Liquids and Gases
Pressure Gauge Type Commercial Pressure Gauge
Accuracy Scale Mid-Scale
Vibration Resistance Liquid-Filled
Ambient Operating Temperature Range -4 Degrees to 140 Degrees F (-20 Degrees to 60 Degrees C)
Includes Calibration Certificate No
Includes Vent Plug No
Case Construction Welded Joint
Accuracy Grade ASME B40.100 Grade B
Sensor Material Bronze
Field Fillable No
Dial Face Material ABS
Primary Scale Minor Graduations 100
Maximum Pressure 5000
Secondary Scale Units kpa
Operating Temperature Range -40 Degrees to 150 Degrees F
Primary Scale Pressure Measurement - Maximum 5,000 psi
IP Rating IP65
Process Media Temperature - Minimum -40 Degrees F
Primary Scale Pressure Measurement - Minimum 0 psi
Compatible with Brand WIKA
Case Liquid Glycerin
Operating Temperature - Maximum 140 Degrees F
Operating Temperature - Minimum -4 Degrees F
Secondary Scale Pressure Measurement - Maximum 34,000 kPa
Secondary Scale Vacuum Measurement - Minimum 0 kPa
Process Media Temperature - Maximum 140 Degrees F
Secondary Scale Pressure Measurement - Minimum 0 kPa
NEMA Enclosure Rating 4
Compatible with Series Universal
Country of Origin United States
