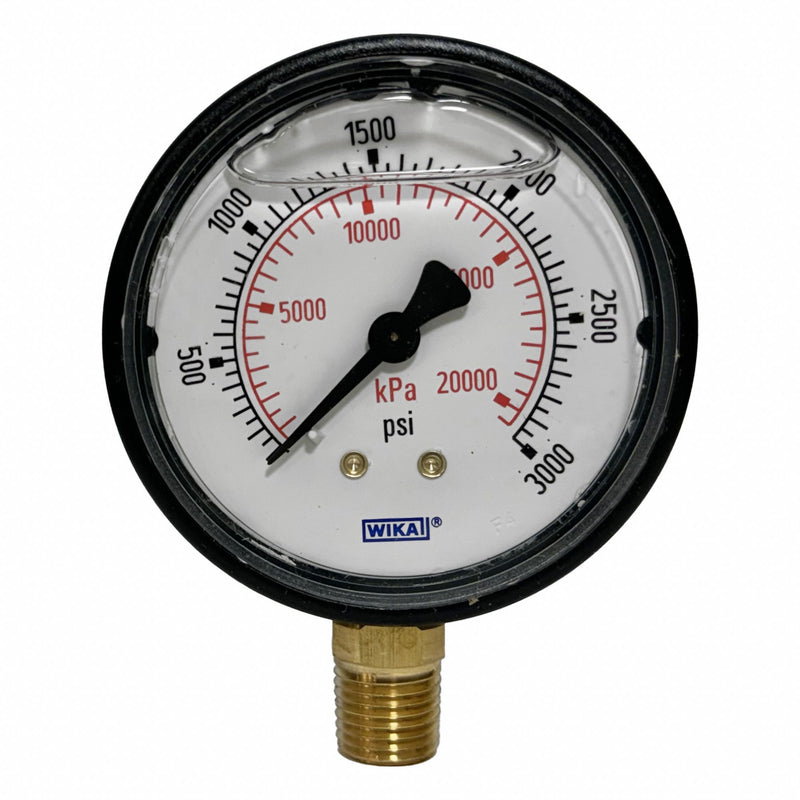

Wika 113.13.25.3000.L Commercial Pressure Gauge, 0 psi to 3,000 psi, 2 1/2 in Dial, 1/4 in NPT Male, Bottom, Plastic

Wika 113.13.25.3000.L Commercial Pressure Gauge, 0 psi to 3,000 psi, 2 1/2 in Dial, 1/4 in NPT Male, Bottom, Plastic

UPC: | Harmonization / Schedule B : 9026.20.8000

Country of Origin: United States | Shipping Weight: 0.4 lbs

$52.79 - $52.79
$52.79
$52.79 - $52.79
$52.79

Commercial Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material ABS, Process Connection Type NPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP65, Primary Pressure Range 0 to 3,000, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge

Process Connection Size 1/4 in
Dial Size (In.) 2 1/2 in
Manufacturer Warranty Length 1 yr
Case Diameter 62.5 mm
Nominal Dial Size 2 1/2 in
Case Depth 27 mm
Nominal Dial Diameter 2 1/2 in
Accuracy +/-3-2-3%
Process Connection Location Bottom
Process Connection Type NPT
Application Compressors, Hydraulics, Marine, Pumps
Gauge Case Material ABS
Series 113.13
Lens Material Plastic
Primary Pressure Range 0 to 3,000
Primary Scale Units psi
IP/NEMA Rating IP65
Liquid-Filled Case Yes
Hazardous Location Rating Not Rated
Panel-Mountable No
Blowout Safety Back No
Gauge Secondary Range Values 0 to 3000
Gauge Application General-Purpose Case
Smallest Graduation 50 psi
Gauge Filled With Glycerin
Graduations 1000 psi
Gauge Primary Range Numbered Graduations 500
For Use With Brass, Industrial Applications, Media Compatible with Copper Alloy
Calibration Certificate Included No
Gauge Primary Range Smallest Graduation 500
Characteristics With Brass Internals
Gauge Special Options Heavy Duty
Case Color Black
Case Material ABS
Socket Material Brass
Connection Type MNPT
Standards EN 837-1
Sensor Type Bourdon Tube
Secondary Scale Units kPa
Compatible Process Media Liquids and Gases
Accuracy Grade ASME B40.100 Grade B
Gauge Case Liquid Glycerin
Vibration Resistance Liquid-Filled
Dial Color White
Sensor Material Bronze
Dial Face Material ABS
Case Construction Welded Joint
Cleaned for Oxygen Service No
Primary Scale Minor Graduations 500
Pointer Color Black
Includes Calibration Certificate No
Non-Sparking No
Pressure Gauge Type Commercial Pressure Gauge
Secondary Pressure Range 0 to 20,000 kPa
Accuracy Scale Mid-Scale
Freeze Resistant Movement No
Dry Dampening Feature None
Process Connection Gender Male
Includes Vent Plug Yes
Field Fillable No
Pointer Material ABS
Ambient Operating Temperature Range -4 Degrees to 140 Degrees F (-20 Degrees to 60 Degrees C)
Scale Type Dual
Pressure Range Type Pressure
Removable Bezel No
Includes Mounting Hardware No
Primary Scale Numeric Increments 500
Maximum Pressure 3000
Operating Temperature Range -4 Degrees to 140 Degrees F
Case Liquid Glycerin
Compatible with Brand WIKA
IP Rating IP65
Process Media Temperature - Maximum 140 Degrees F
Compatible with Series Universal
Operating Temperature - Maximum 140 Degrees F
Primary Scale Pressure Measurement - Minimum 0 psi
Operating Temperature - Minimum -4 Degrees F
Secondary Scale Pressure Measurement - Maximum 20,000 kPa
NEMA Enclosure Rating 4
Primary Scale Pressure Measurement - Maximum 3,000 psi
Secondary Scale Pressure Measurement - Minimum 0 kPa
Process Media Temperature - Minimum -40 Degrees F
Country of Origin United States
