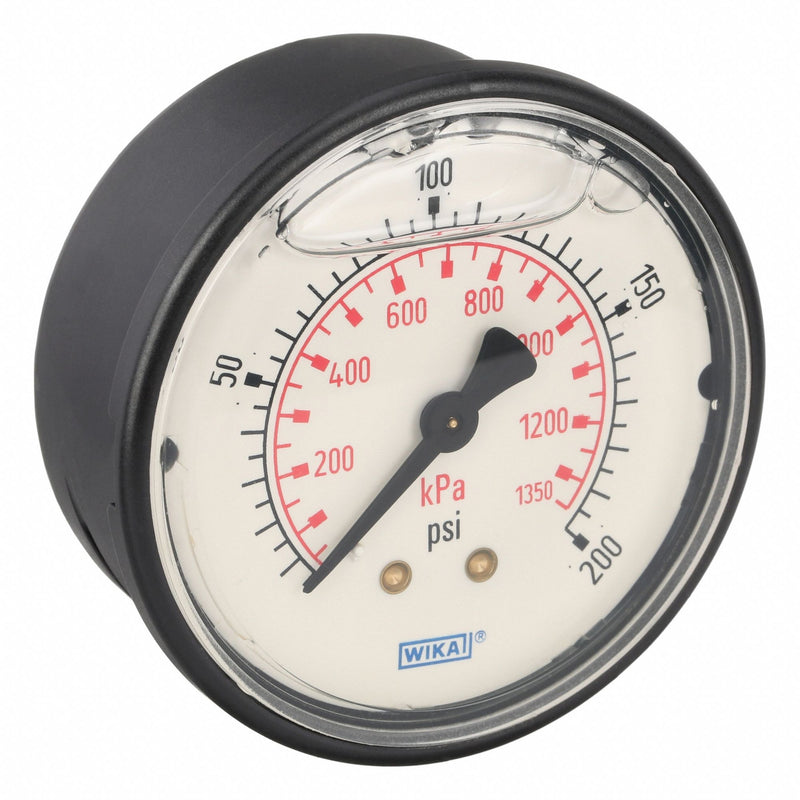

Wika 113.13.25.200.B Commercial Pressure Gauge, 0 psi to 200 psi, 2 1/2 in Dial, 1/4 in NPT Male, Center Back, 4

Wika 113.13.25.200.B Commercial Pressure Gauge, 0 psi to 200 psi, 2 1/2 in Dial, 1/4 in NPT Male, Center Back, 4

UPC: | Harmonization / Schedule B : 9026.20.8000

Country of Origin: United States | Shipping Weight: 0.5 lbs

$56.11 - $56.11
$56.11
$56.11 - $56.11
$56.11

Commercial Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material ABS, Process Connection Type NPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Black, IP/NEMA Rating IP65, Primary Pressure Range 0 to 200, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge

Process Connection Size 1/4 in
Dial Size (In.) 2 1/2 in
Manufacturer Warranty Length 1 yr
Case Depth 29 mm
Case Diameter 62.5 mm
Nominal Dial Size 2 1/2 in
Nominal Dial Diameter 2 1/2 in
Accuracy +/-3-2-3%
Process Connection Location Center Back
Process Connection Type NPT
Application Compressors, Hydraulics, Marine, Pumps
Gauge Case Material ABS
Series 113.13
Lens Material Plastic
Primary Pressure Range 0 to 200
Primary Scale Units psi
IP/NEMA Rating IP65
Liquid-Filled Case Yes
Hazardous Location Rating Not Rated
Panel-Mountable No
Blowout Safety Back No
Case Color Black
Calibration Certificate Included No
Gauge Primary Range Smallest Graduation 50
For Use With Non Explosive Gas or Liquid That Do Not Crystalize and Corrode Copper Alloy
Smallest Graduation 20 psi
Gauge Primary Range Numbered Graduations 50
Gauge Secondary Range Values 0 to 10
Gauge Filled With Glycerin
Gauge Application General-Purpose Case
Gauge Special Options Heavy Duty
Characteristics With Brass Internals
Graduations 20 psi
Case Material ABS
Socket Material Brass
Connection Type MNPT
Standards EN 837-1
Compatible Process Media Liquids and Gases
Non-Sparking No
Includes Calibration Certificate No
Vibration Resistance Liquid-Filled
Pointer Material ABS
Dial Color White
Scale Type Dual
Includes Vent Plug Yes
Secondary Scale Units kPa
Primary Scale Minor Graduations 50
Case Construction Welded Joint
Process Connection Gender Male
Ambient Operating Temperature Range -4 Degrees to 140 Degrees F (-20 Degrees to 60 Degrees C)
Pointer Color Black
Primary Scale Numeric Increments 50
Gauge Case Liquid Glycerin
Field Fillable No
Sensor Type Bourdon Tube
Sensor Material Bronze
Dial Face Material ABS
Pressure Gauge Type Commercial Pressure Gauge
Pressure Range Type Pressure
Freeze Resistant Movement No
Accuracy Grade ASME B40.100 Grade B
Removable Bezel No
Includes Mounting Hardware No
Accuracy Scale Mid-Scale
Secondary Pressure Range 0 to 1,400 kPa
Cleaned for Oxygen Service No
Dry Dampening Feature None
Maximum Pressure 200
Operating Temperature Range -4 Degrees to 140 Degrees F
Secondary Scale Pressure Measurement - Minimum 0 kPa
Compatible with Series Universal
Process Media Temperature - Minimum -40 Degrees F
Operating Temperature - Maximum 140 Degrees F
Operating Temperature - Minimum -4 Degrees F
Compatible with Brand WIKA
NEMA Enclosure Rating 4
Secondary Scale Pressure Measurement - Maximum 1,400 kPa
IP Rating IP65
Case Liquid Glycerin
Primary Scale Pressure Measurement - Maximum 200 psi
Primary Scale Pressure Measurement - Minimum 0 psi
Process Media Temperature - Maximum 140 Degrees F
Country of Origin United States
