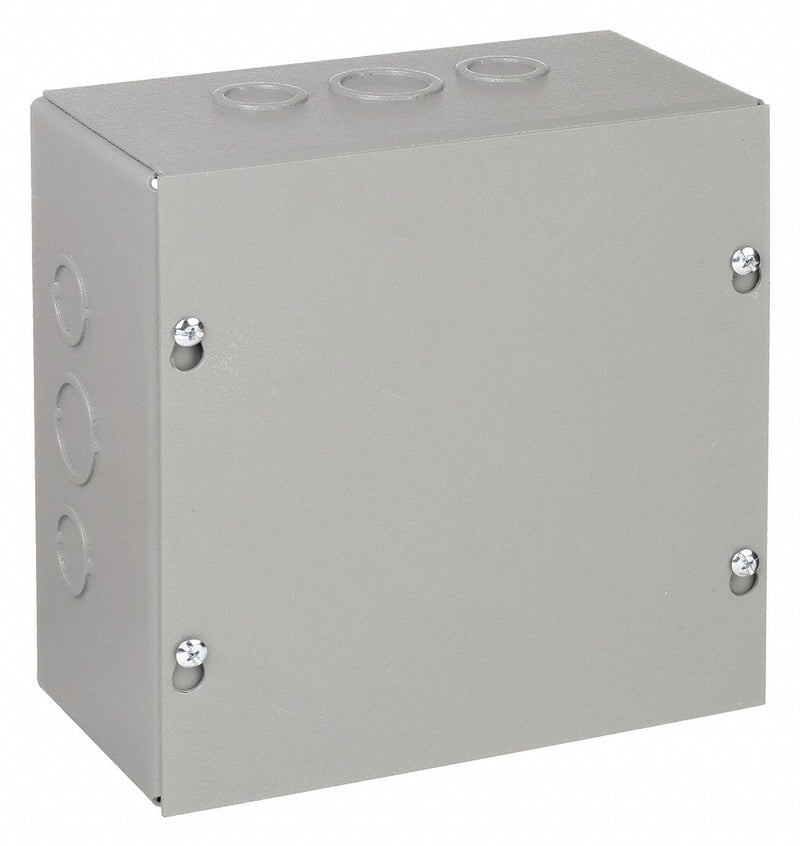

Wiegmann SC060604 Enclosure, Steel, 6 in x 6 in x 4 in, NEMA 1, Solid Cover, Screw On, Included, Painted

Wiegmann SC060604 Enclosure, Steel, 6 in x 6 in x 4 in, NEMA 1, Solid Cover, Screw On, Included, Painted

UPC: 786725312306 | Harmonization / Schedule B : 8538.10.0000

Country of Origin: Mexico | Shipping Weight: 3.2 lbs

$28.65 - $28.65
$28.65
$28.65 - $28.65
$28.65

Enclosure NEMA Rating 1, Material of Enclosure Carbon Steel, 6 in, Screw On Enclosure Cover Type, Solid / Clear Cover Solid, Closure Method Screws, Finish ANSI 61 Powder Coated, Color Gray, Depth 4 in, Enclosure Cover Features Plated Steel Screws, Features Embossed Mounting Holes, 6 in and 8 in Side Knockout Pattern, Height 6 in, Includes Self-Tapping Screws, Metal Gauge 16 ga, Wall Mounting, Series SC, Standards CSA Certified, cULus, UL Listed, Usable Opening Depth 3.88 in, Width 6 in

Nominal Width 6 in
Nominal Height 6 in
Nominal Depth 4 in
Usable Opening Depth 3.88 in
Overall Height 6 in
Body Material Thickness 16 ga
CAD Available Yes
NEMA Enclosure Rating 1
Enclosure Material Steel
Closure Method Captive Screws
Cover Closure Type Screw On
Knockouts Yes
Metallic / Non-Metallic Metallic
Color Gray
Finish Polyester Powder
Mounting Wall
Cover Style Solid
Material of Enclosure Carbon Steel
Includes Self-Tapping Screws
Standards CSA Certified, cULus, UL Listed
Solid / Clear Cover Solid
Enclosure NEMA Rating 1
Features Embossed Mounting Holes, 6 in and 8 in Side Knockout Pattern
Series SC
Enclosure Cover Type Screw On
Weight 3.3 lb.
Capacity 144 cu.in
Environment - MERCH Indoor
Includes Knockouts Knockouts Included
Country of Origin Mexico
