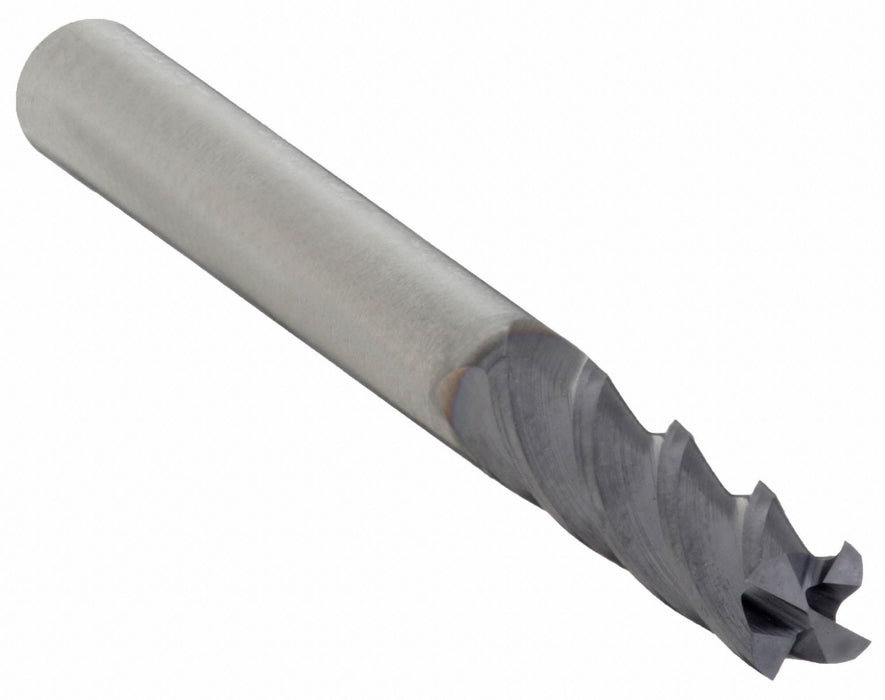

Widia Hanita I4S0062T011R GP Square End Mill, 1/16 in Mill Dia, 4 Flute, Carbide, TiAlN Coated, 1-1/2 in OAL

Widia Hanita I4S0062T011R GP Square End Mill, 1/16 in Mill Dia, 4 Flute, Carbide, TiAlN Coated, 1-1/2 in OAL

UPC: | Harmonization / Schedule B : 8207.70.6045

Country of Origin: Japan | Shipping Weight: 0.02 lbs

$17.53 - $17.53
$17.53
$17.53 - $17.53
$17.53

Square End Mill, 0.0625 in Milling Dia., Carbide, TiAlN, Non-Coolant Through, Straight, Length of Cut 0.109375 in, Overall Length 1 1/2 in, Shank Dia. 1/8 in, Neck Dia. Not Applicable.

Series GP
List Number I4S
End Mill Style Square
Material Carbide
Coating TiAlN
Number of Flutes 4
Milling Diameter 1/16 in
Length of Cut 7/64 in
Overall Length 1-1/2 in
Shank Diameter 1/8 in
Shank Type Straight
Helix Angle 30 °
End Type Single
End Mill Cutting Type Center Cutting
Flute Type Spiral
Flute Spacing Fixed
Cutting Direction Right Hand
Coolant Fed Non-Coolant Through
End Mill Application Finishing
Material Grade TiAlN
Measurement System Inch
Primary Material Application Steel, Stainless Steel, Cast Iron
Primary Material Application ISO Code P; M; K
Country of Origin Japan
