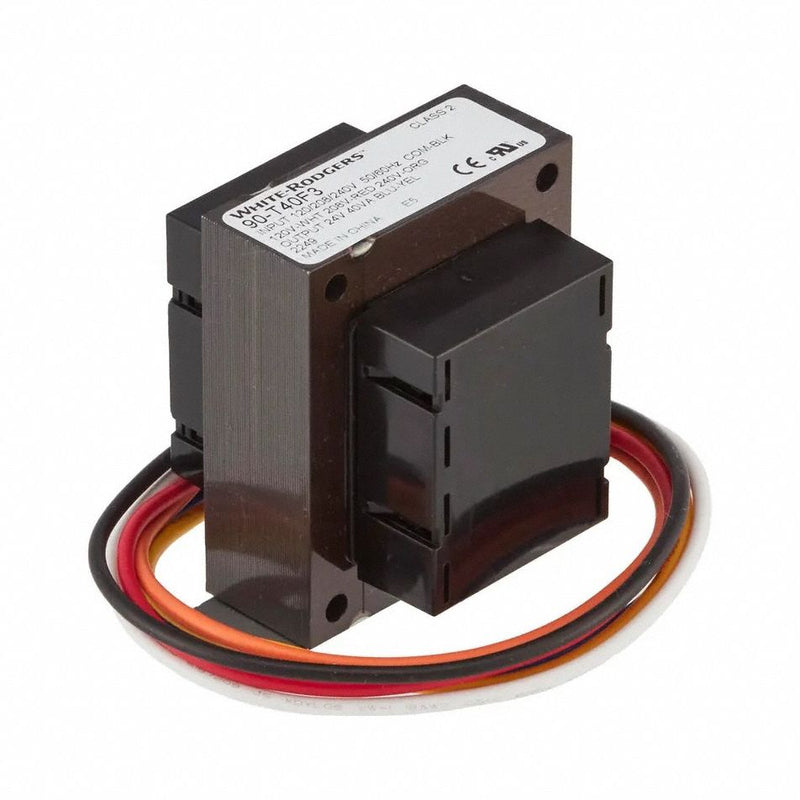

White-Rodgers 90-T40F3 Class 2 Transformer, 40 VA Power Rating, 120V AC/208V AC/240V AC, 24V AC, Foot

White-Rodgers 90-T40F3 Class 2 Transformer, 40 VA Power Rating, 120V AC/208V AC/240V AC, 24V AC, Foot

UPC: 786710548321 | Harmonization / Schedule B : 8504.31.4065

Country of Origin: China | Shipping Weight: 1.55 lbs

$32.62 - $32.62
$32.62
$32.62 - $32.62
$32.62

Class 2 Transformer, Input Voltage - Transformer 120V AC, 208V AC, 240V AC, Output Voltage - Transformer 24V AC, VA Rating - Transformer 40 VA, Protective Device None, Enclosure Style - Transformer Open, Mounting - Transformer Foot, Phase - Electrical 1, Hz - Electrical 60 Hz, Primary Connection 11 in Leads, Secondary Connection 11 in Leads, Temp. Rise 85 Degrees C, Enclosure Finish No Finish, Enclosure Rating Not Rated

Overall Height 2 3/4 in
Overall Width 3 1/4 in
Overall Depth 2.19 in
Input Voltage - Transformer 120/208/240V AC
Output Voltage 24V AC
Power Rating 40 VA
Phase Single
Mounting - Transformer Foot
Hz - Electrical 60 Hz
NEMA Enclosure Rating Not Rated
Temperature Rise 185 Degrees F
Enclosure Finish No Finish
Secondary Connection 11 in Leads
Enclosure Type Open
Protective Device None
Primary Connection 11 in Leads
Standards UL Recognized File No. E33334
Connection - Primary Wire Lead
Enclosure Style Open
Connection - Secondary Wire Lead
Country of Origin China
