White Rodgers 90-340 Magnetic Relay, Coil Volts 24, Switch Type DPDT - KVM Tools Inc.KV4E943

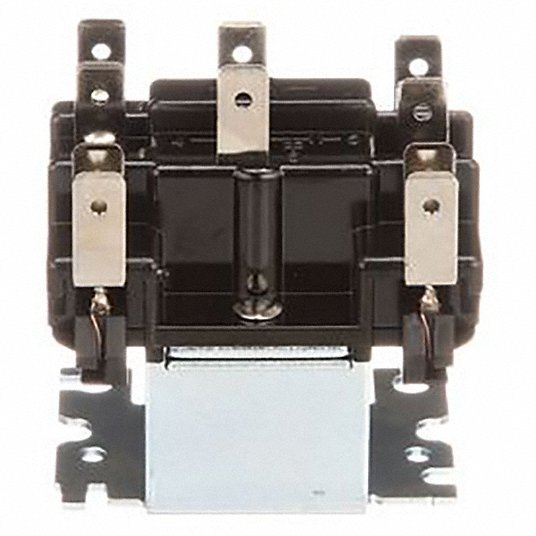

White Rodgers 90-340 Magnetic Relay, Coil Volts 24, Switch Type DPDT

UPC: 786710070662 | Harmonization / Schedule B : 8536.49.0075

Country of Origin: China | Shipping Weight: 0.4 lbs

$26.98 - $26.98
$26.98
$26.98 - $26.98
$26.98

Magnetic Relay, Coil Voltage 24V AC, Contact Form DPDT, Current Rating 334 mA, Electrical Connection Quick-Connect, Number of Pins 6, Sealing Semi-Enclosed, Status Indicator No Indicator, Contact Rating (AC) 334 mA @ 125V, Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Universal, Body Depth 2.08 in, Body Height 1.86 in, Body Width 2.11 in, Coil Resistance 17.5 ohm

Item Magnetic Relay
Switch Type DPDT
Coil Volts 24
HP 1/2 hp
Full Load Amps @ 120VAC 12
Agency Compliance UL
Locked Rotor Amps @ 120V 60
Mounting Universal
Type AC Switching
Locked Rotor Amps @ 240V 35
Application Air Conditioning, Heating/Ventilating Control System, Motor Starting, Heating Element Operation and Power Supply Control
Full Load Amps @ 277V 6
Full Load Amps @ 240VAC 6
Resistive Amps @ 277V 15
Electrical Connection Type Tab
Standards CSA File No. LR13360, UL E12139
For Use With General Purpose Switching, HVAC Equipment, Vending Machines and Appliances
Frequency 50/60 Hz
Coil Voltage 24V AC
Electrical Connection Quick-Connect
Mounting Style Universal
Horsepower @ 240V AC 1/2 hp
Power Consumption 9.5 VA
Sealing Semi-Enclosed
Relay Mounting Style Surface
Environmental Protection Enclosed
Electrical Operating Durability 100,000
Contact Rating (AC) 334 mA @ 125V
Coil Voltage Type AC
Coil Resistance 17.5 ohm
Mechanical Operating Durability 1,000,000
Horsepower @ 120V AC 1/2 hp
Operating Current 15 A at 277V AC (Resistive Load)
Contact Form DPDT
Input Voltage 24V AC
Minimum Operating Temperature -40 Degrees F
Weight 6 oz
Number of Pins 6
Compatible with Manufacturer Model Number 90-112, 90-113, 90-118E, 90-119
Maximum Operating Temperature 130 Degrees F
Socket Code Configurator Surface / 6
Motor Rated Yes
Current Rating 334 mA
Package Quantity 1
