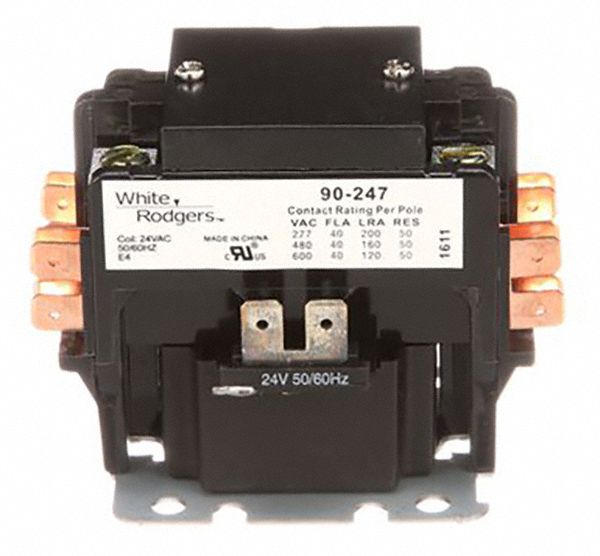

White-Rodgers 90-247 Definite Purpose Contactor

White-Rodgers 90-247 Definite Purpose Magnetic Contactor, Type 122, 2-Pole, 40A, 24V AC

UPC: 786710027802 | Harmonization / Schedule B : 8536.49.0065

Country of Origin: China | Shipping Weight: 0.65 lbs

$65.68 - $65.68
$65.68
$65.68 - $65.68
$65.68

White-Rodgers 90-247 HVACR definite-purpose magnetic contactor, Type 122, 2-pole, 50/60 Hz. 24V AC coil. Non-reversing. Full load 50A resistive / 40A inductive. Maximum voltage 600V AC. Quick-disconnect terminals. Universal mounting. UL Listed and ARI certified.

Number of Poles 2
Coil Voltage 24V AC
Full Load Current - Resistive 50 A
Full Load Current - Inductive 40 A
Maximum Voltage Rating 600V AC
Reversing Capability Non-Reversing
Frequency 50/60 Hz
Contactor Style HVACR Definite Purpose Contactor
Terminal Connection Type Quick-Disconnect Terminals
Mounting Style Universal
Series 90 Series
Standards ARI, UL Listed
Maximum Operating Temperature 150 Degrees F
Country of Origin China
