WEG .5036ES3E56-S General Purpose Motor Totally Enclosed Fan-Cooled, Rigid Base Mount, 1/2 HP, 208-230/460V AC, F - KVM Tools Inc.KV35JF86

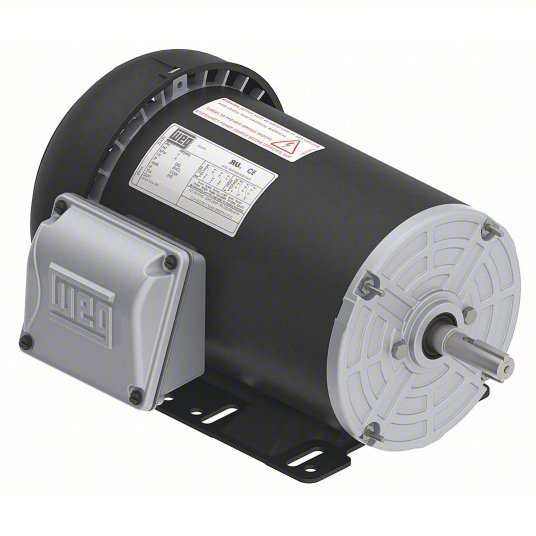

WEG .5036ES3E56-S General Purpose Motor Totally Enclosed Fan-Cooled, Rigid Base Mount, 1/2 HP, 208-230/460V AC, F

UPC: | Harmonization / Schedule B : 8501.51.4040

Country of Origin: United States | Shipping Weight: 21.1 lbs

$321.26 - $321.26
$321.26
$321.26 - $321.26
$321.26
General Purpose Motor, Three Phase, Motor Design 3-Phase, 1/2 HP, Nameplate RPM 3,500, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 1.86-1.69/0.843 A, 56 Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle
Motor Enclosure Design Totally Enclosed Fan-Cooled
Motor Mounting Type Rigid Base
HP 1/2
RPM Range 3,001-3,600
Voltage 208-230/460V AC
Frame 56
Motor Thermal Protection None
Motor Service Factor 1.15
Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Motor Application General Application
Motor Design 3-Phase
Nameplate RPM 3,500
Motor Shaft Rotation CW/CCW
Motor Mounting Position All Angle
Motor Frame Material Steel
Motor Shaft Design Keyed
Standards CSA, UL
Motor Bearings Ball
Green Environmental Attribute Does not Contain Formaldehyde
No. of Speeds 1
Inverter Rated Yes
Phase Three
Full Load Amps 1.86-1.69/0.843 A
Hz 60 Hz
Max. Ambient Temp. 104 Degrees F
Ins. Class F
RPM Group 3001-3600
Frame Material Rolled steel
Nominal Efficiency 68 %
Duty Continuous
Usable @ 200V No
Duty Cycle Continuous
Full Load Amps @ 50Hz 1.65/0.88, 1.78/0.890 A
Voltage @ 50Hz 190/380V AC, 220/415V AC
HP @ 50Hz 1/2
Usable @ 208V Yes
Service Factor @ 50Hz 1.15
RPM @ 50Hz 2,865
Weight 19.2 lb
Capacitor Required No
