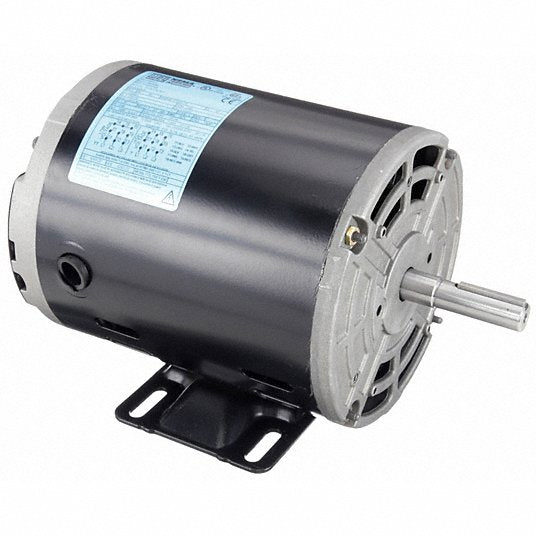

WEG .5018OT3E56-S 3-Phase General Purpose Motor, 1/2 HP, 56 Frame, 208-230/460V AC Voltage, 1,765 Nameplate RPM
UPC: 696334114744 | Harmonization (Schedule B): 8501.51.4040
SKU KV52XR16
Original price
$297.41
-
Original price
$297.41
Original price
$297.41
$297.41
-
$297.41
Current price
$297.41
General Purpose Motor, Three Phase, Motor Design 3-Phase, 1/2 HP, Nameplate RPM 1,765, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 1.90-1.70/0.86, 56 Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Inverter Rated Yes
Comparable to Grainger # 2N103
| Item | General Purpose Motor |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Type | Rigid Base |
| HP | 1/2 |
| RPM Range | 1,701-1,800 |
| Voltage | 208-230/460V AC |
| Frame | 56 |
| Motor Thermal Protection | None |
| Motor Service Factor | 1.25 |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Nameplate RPM | 1,765 |
| Motor Shaft Rotation | CW/CCW |
| Motor Mounting Position | All Angle |
| Motor Frame Material | Steel |
| Motor Shaft Design | Keyed |
| Standards | CSA, UL |
| Includes | Conduit Box |
| Max. Ambient Temp. | 40 Degrees C |
| Nominal Efficiency | 78.2 % |
| Motor Bearings | Ball |
| Inverter Rated | Yes |
| Phase | Three |
| Duty | Continuous |
| RPM Group | 1701-1800 |
| Motor Efficiency Group | NEMA Premium Efficient |
| No. of Speeds | 1 |
| Ins. Class | F |
| CC Number | CC029A |
| Hz | 60 |
| Full Load Amps | 1.90-1.70/0.86 |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
| Voltage @ 50Hz | 190/380V AC, 220/415V AC |
| Usable @ 200V | No |
| Duty Cycle | Continuous |
| Weight | 20.6 lb |
| Usable @ 208V | Yes |
| Service Factor @ 50Hz | 1.25 |
| HP @ 50Hz | 1/2 |
| RPM @ 50Hz | 1,450 |
| Full Load Amps @ 50Hz | 1.79/0.95, 1.89/0.94 |
| Package Quantity | 1 |
