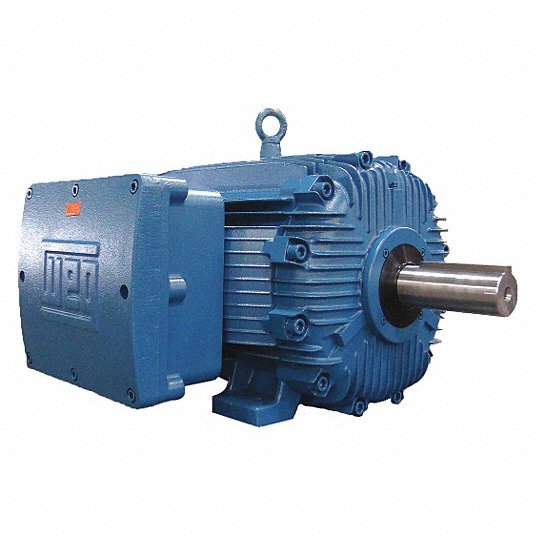

WEG 07518XT3E365T Hazardous Location Motor Division I, Class I/Class II, Rigid Base, 75 hp Horsepower, T-Stat

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 75 hp HP, Nameplate RPM 1,780 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 166.0/83.2 A, 365T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3C, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous

Phase	Three
HP	75 hp
RPM Range	1,701-1,800
Voltage	230/460V AC
Frame	365T
Hazardous Location Class	Class I, Class II
Motor Thermal Protection	T-Stat
Motor Enclosure Design	Totally Enclosed Fan Cooled
Motor Mounting Type	Rigid Base
Motor Bearings	Ball
Ins. Class	F
CC Number	CC029A
Hz	60 Hz
Full Load Amps	166.0/83.2 A
Motor Shaft Design	Keyed
Motor Shaft Rotation	CW/CCW
Motor Service Factor	1.15
Frame Material	Cast Iron
Item	Hazardous Location Motor
Motor Efficiency Group	NEMA Premium Efficient
Green Environmental Attribute	Product Contributes To Reducing Energy Consumption
Standards	CSA Certified (LR50962), UL Listed (E87848)
Temp. Code	T3C
Nominal Efficiency	95.4 %
Motor Application	Hazardous Location
Voltage Compatibility	208-220/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC
Motor Frame Material	Cast Iron
Max. Ambient Temp.	40 Degrees C
Green Certification or Other Recognition	NEMA Premium Rated
Duty	Continuous
NEMA Design	B
Nameplate RPM	1,780 RPM
Motor Mounting Position	Horizontal
Weight	26 lb
Duty Cycle	Continuous
Usable @ 208V	Usable at 208V
Usable @ 200V	Not Usable at 200V
No. of Speeds	1
Conduit Box Location	Exterior
Hazardous Location Division	Division I
Hazardous Location Group	Group C, Group D, Group F, Group G
Explosion Proof	Explosion Proof
