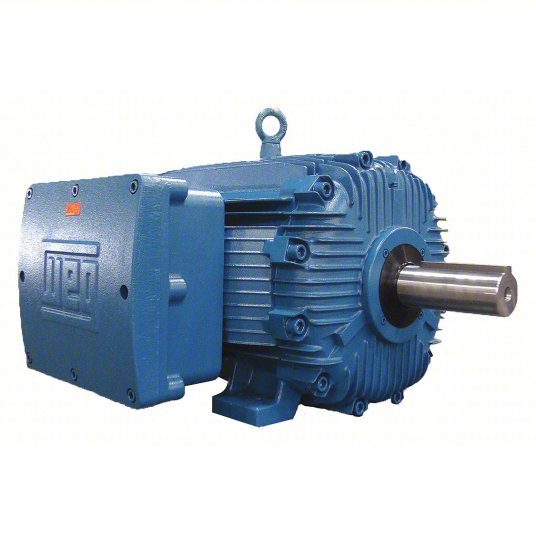

WEG 01518XT3E254T Hazardous Location Motor 1 C,D / 2 F,G, 15 HP, 1,770 Nameplate RPM, 208 - 230/460V AC, 254T Frame - KVM Tools Inc.KV4YPV1

WEG 01518XT3E254T Hazardous Location Motor 1 C,D / 2 F,G, 15 HP, 1,770 Nameplate RPM, 208-230/460V AC, 254T Frame

UPC: | Harmonization / Schedule B : 8501.52.4000

Country of Origin: United States | Shipping Weight: 391 lbs

$4,251.31 - $4,251.31
$4,251.31
$4,251.31 - $4,251.31
$4,251.31
Hazardous Location Motor, Three Phase, Motor Design 3-Phase, 15 HP, Nameplate RPM 1,770, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 36.8/18.4 A, 254T Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Max. Ambient Temp. 104 Degrees F, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class 1 C,D / 2 F,G, Temp. Code T4, Motor Enclosure Design Totally Enclosed Fan-Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base
Motor Design 3-Phase
Phase Three
HP 15
RPM Range 1,701-1,800
Voltage 208-230/460V AC
Frame 254T
Hazardous Location Class 1 C,D / 2 F,G
Motor Thermal Protection T-Stat
Motor Enclosure Design Totally Enclosed Fan-Cooled
Motor Mounting Type Rigid Base
CC Number CC029A
Motor Bearings Ball
Ins. Class F
Voltage Compatibility 208-220/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC
Motor Application Hazardous Location
Duty Continuous
Nameplate RPM 1,770
Motor Shaft Design Keyed
Green Environmental Attribute Product Contributes To Reducing Energy Consumption
Frame Material Cast Iron
UPC 7894171898749
Motor Frame Material Cast Iron
Green Certification or Other Recognition NEMA Premium Rated
Nominal Efficiency 92.4 %
Motor Shaft Rotation CW/CCW
Motor Service Factor 1.15
NEMA Design B
Hz 60 Hz
Standards CSA Certified (LR50962), UL Listed (E87848)
Motor Efficiency Group NEMA Premium Efficient
Full Load Amps 36.8/18.4 A
Temp. Code T4
Max. Ambient Temp. 104 Degrees F
No. of Speeds 1
Weight 144 lb
Conduit Box Location Exterior
Duty Cycle Continuous
Usable @ 200V No
Hazardous Location Division Division 1
Usable @ 208V Yes
Motor Mounting Position Horizontal
