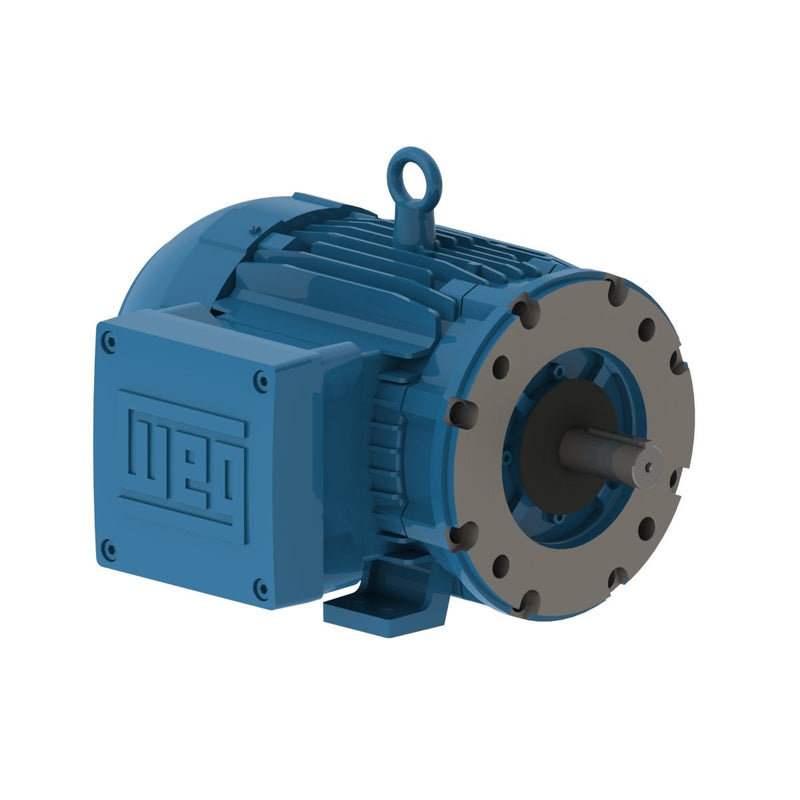

WEG 00518XT3E184TC Explosion Proof Motor Division I, Class I/Class II, C-Face/Rigid Base, 5 hp Horsepower, T-Stat

Explosion Proof Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 1,750 RPM, Voltage 230/460V AC, Full Load Amps 13.1/6.57 A, 182-4TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3C, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous

Motor Mounting Type	C-Face, Rigid Base	HP	5 hp
RPM Range	1,701-1,800	Voltage	230/460V AC
Frame	182-4TC	Motor Thermal Protection	T-Stat
Motor Service Factor	1.15	Voltage Compatibility	230V AC, 460V AC
Motor Application	Hazardous Location	Motor Sub Application	Hazardous Application
Nameplate RPM	1,750 RPM	Motor Frame Material	Cast Iron
Motor Mounting Position	Horizontal	Motor Shaft Design	Keyed
Motor Shaft Rotation	CW/CCW	Motor Design	Three-Phase
Standards	NEMA MG-1	CC Number	CC029A
Max. Ambient Temp.	40 Degrees C	Full Load Amps	13.1/6.57 A
Green Certification or Other Recognition	NEMA Premium(R) Rated	Ins. Class	F
Motor Bearings	Ball	Hz	60 Hz
Nominal Efficiency	89.5 %	Phase	Three
Weight	139 lb	Hazardous Location Division	Division I
Duty Cycle	Continuous	Hazardous Location Class	Class I, Class II
Hazardous Location Group	Group C, Group D, Group F, Group G	Temp. Code	T3C
Usable @ 208V	Usable at 208V	Usable @ 200V	Not Usable at 200V
