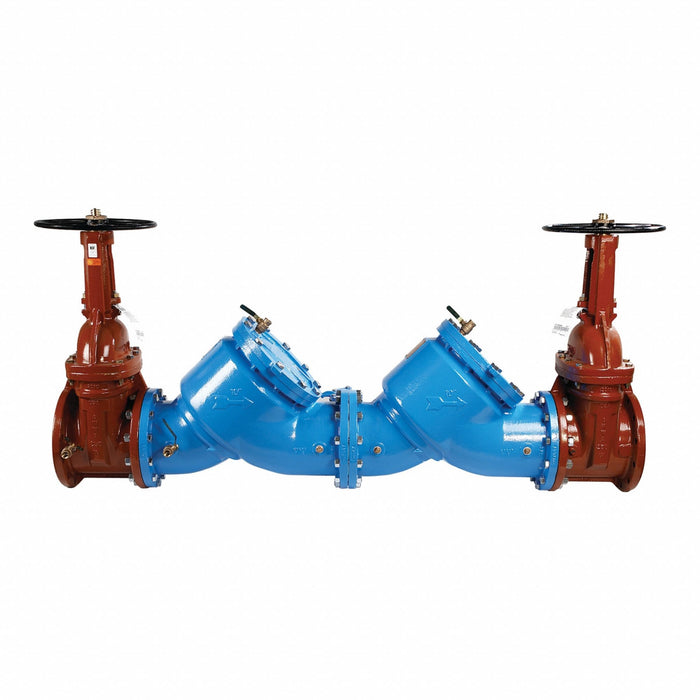

Watts LF709-OSY Double Check Valve Assembly, 10 in Pipe, Flange x Flange, 175 psi, Cast Iron, OSY Gate Shutoff

Watts LF709-OSY Double Check Valve Assembly, 10 in Pipe, Flange x Flange, 175 psi, Cast Iron, OSY Gate Shutoff

UPC: 098268646900 | Harmonization / Schedule B : 8481.30.1090

Country of Origin: United States | Shipping Weight: 2003 lbs

$56,744.34 - $56,744.34
$56,744.34
$56,744.34 - $56,744.34
$56,744.34

Double Check Valve Assembly, Series Watts 709, Size 10 in., Connection Flanged, Body Material Cast Iron, Temp. Range 33 to 110 Degrees F, Max. Temp. 110 Degrees F, Max. Pressure 175 psi, Width 22-3/4 in., Length 90 in., Height 45-3/4 in., Features OSY Shutoffs, Standards AWWA C510-92, IAPMO PA 31, USC Manual for Cross Connection Control 8th Edition, Compliance ASSE 1015, UPC, CSA B64.5, UL Classified, FM Approved, USC, Lead Free

Body Material Cast iron
Temp. Range 33 Degrees to 110 Degrees F
Max. Temp. 110 Degrees F
Compliance ASSE 1015, CSA B64.5, FM Approved, Lead Free, UL Classified, UPC, USC
Series Watts 709
Features OSY Shutoffs
Connection Flanged Joint
Max. Pressure 175 psi
Standards ASSE 1015, AWWA C510-92, CSA B64.5, cULus Classified, FM, IAPMO PA31, NSF, UPC, USC Manual
Shut-Off Valve Included OSY Gate Valve
Maximum Pressure - Operating 175 psi
Connection Type - Side 1 Flange
Connection Type - Side 2 Flange
Includes Freeze Sensor No Freeze Sensor
Operating Temperature - Maximum 110 Degrees F
Manufacturer Warranty 1 yr
Flow 4,000 gpm
For Media Water
Hazard Protection Level Low Health Hazard
Includes Flow Meter No Flow Meter
Mounting Orientation Horizontal, Vertical
Includes Strainer No Strainer
Backflow Preventer Type Double Check Assembly (DC)
Seat Material Stainless Steel
Operating Temperature - Minimum 33 Degrees F
Valve Series LF709
