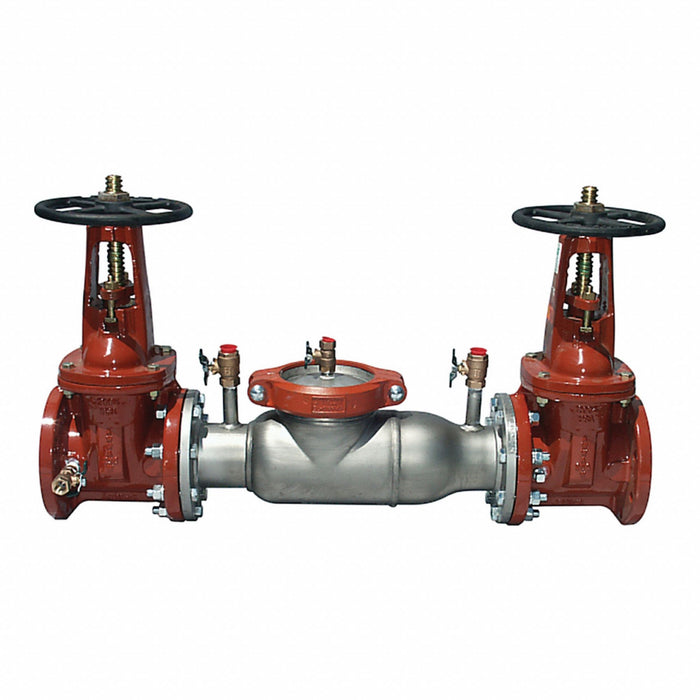

Watts 774-OSY Double Check Valve Assembly, 12 in Pipe, Flange x Flange, Stainless Steel, OSY Gate Shutoff, Short Lay Length, 175 psi

UPC: 098268877342 | Harmonization / Schedule B : 8481.30.1090

Country of Origin: United States | Shipping Weight: 1505 lbs

Original price $55,412.00 - Original price $55,412.00
Original price
$55,412.00
$55,412.00 - $55,412.00
Current price $55,412.00

Double Check Valve Assembly, Series Watts 774, Size 12 in., Connection Flanged, Body Material Stainless Steel, Temp. Range 33 to 110 Degrees F, Max. Temp. 110 Degrees F, Max. Pressure 175 psi, Width 19 in., Length 57-1/2 in., Height 62-5/8 in., Features OSY Shutoff, Short Lay Length, Standards AWWA C510-92, CSA B64.5, Compliance ASSE 1015, FM Approved (4 in. to 10 in. OSY Only) UL Classified (OSY Only)

Body Material Stainless steel
Temp. Range 33 Degrees to 110 Degrees F
Connection Flanged Joint
Max. Pressure 175 psi
Features OSY Shutoff, Short Lay Length
Compliance ASSE 1015, FM Approved (4 in to 10 in OSY Only) UL Classified (OSY Only)
Max. Temp. 110 Degrees F
Series Watts 774
Standards ASSE 1015, AWWA C510-92, CSA B64.5, cULus Classified, FM
Flow 4,500 gpm
Spring Material Stainless Steel
Hazard Protection Level Low Health Hazard
For Media Water
Maximum Pressure - Operating 175 psi
Operating Temperature - Minimum 33 Degrees F
Check Mechanism Material Thermoplastic
Number of Test Ports 4
Includes Flow Meter No Flow Meter
Connection Type - Side 1 Flange
Connection Type - Side 2 Flange
Includes Strainer No Strainer
Manufacturer Warranty 1 yr
Operating Temperature - Maximum 110 Degrees F
Shut-Off Valve Included OSY Gate Valve
Backflow Preventer Type Double Check Assembly (DC)
Includes Freeze Sensor No Freeze Sensor
