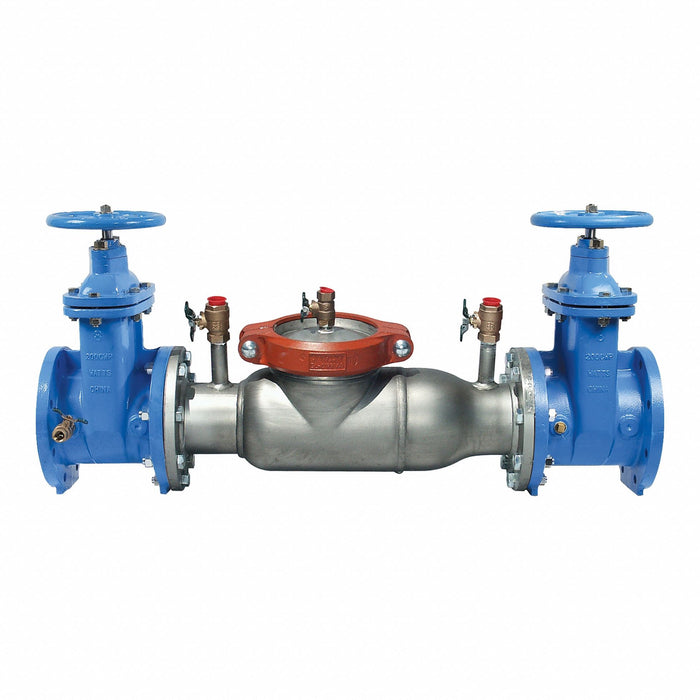

Watts 774-NRS Double Check Valve Assembly, 10 in Pipe, Flange x Flange, Stainless Steel, NRS Gate Shutoff, 175 psi

Watts 774-NRS Double Check Valve Assembly, 10 in Pipe, Flange x Flange, Stainless Steel, NRS Gate Shutoff, 175 psi

UPC: 098268795615 | Harmonization / Schedule B : 8481.30.1090

Country of Origin: United States | Shipping Weight: 1080 lbs

$36,375.48 - $36,375.48
$36,375.48
$36,375.48 - $36,375.48
$36,375.48

Double Check Valve Assembly, Series Watts 774, Size 10 in., Connection Flanged, Body Material Stainless Steel, Temp. Range 33 to 110 Degrees F, Max. Temp. 110 Degrees F, Max. Pressure 175 psi, Width 16 in., Length 55-1/2 in., Height 31-13/16 in., Features NRS Shutoff, Short Lay Length, Standards AWWA C510-92, CSA B64.5, Compliance ASSE 1015, FM Approved (4 in. to 10 in. OSY Only) UL Classified (OSY Only)

Body Material Stainless steel
Temp. Range 33 Degrees to 110 Degrees F
Max. Temp. 110 Degrees F
Features NRS Shutoff, Short Lay Length
Series Watts 774
Standards ASSE 1015, AWWA C510-92, CSA B64.5
Max. Pressure 175 psi
Compliance ASSE 1015, FM Approved (4 in to 10 in OSY Only) UL Classified (OSY Only)
Connection Flanged Joint
Spring Material Stainless Steel
Flow 3,500 gpm
Operating Temperature - Maximum 110 Degrees F
Manufacturer Warranty 1 yr
Includes Freeze Sensor No Freeze Sensor
Mounting Orientation Horizontal, Vertical
Hazard Protection Level Low Health Hazard
Shut-Off Valve Included NRS Gate Valve
Includes Flow Meter No Flow Meter
Backflow Preventer Type Double Check Assembly (DC)
Connection Type - Side 1 Flange
Check Mechanism Material Thermoplastic
Operating Temperature - Minimum 33 Degrees F
Maximum Pressure - Operating 175 psi
Number of Test Ports 4
Includes Strainer No Strainer
For Media Water
Connection Type - Side 2 Flange
Valve Series 774
