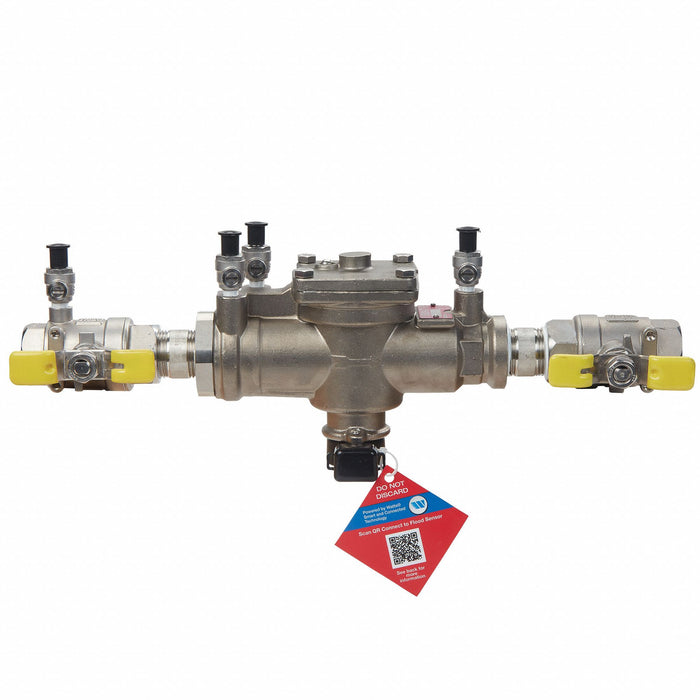

Watts 1 SS009-QT Backflow Preventer Stainless Steel

Watts 1 SS009-QT Backflow Preventer, Reduced Pressure Zone, 1 in FNPT, 175 psi, 316 Stainless Steel, SS009 Series

UPC: | Harmonization / Schedule B : 8481.30.1090

Country of Origin: United States | Shipping Weight: 12.7 lbs

$5,957.89 - $5,957.89
$5,957.89
$5,957.89 - $5,957.89
$5,957.89

Backflow Preventer, Size 1", 175 psi

Body Material Stainless Steel
Temp. Range 33 Degrees to 180 Degrees F
Max. Pressure 175 psi
Standards ASSE 1013, AWWA C511-92, NSF 61, USC Manual 9th Edition
Max. Temp. 180 Degrees F
Connection NPT
Features All Wetted Valve Components - Test Cocks, Ball Valve Shutoffs, Pipe Nipples, Body and Cover, Check Modules and Relief Valve Assembly are Made from Lead Free Stainless Steel or Plastic Construction, Bolted On, Top Entry Single Access Cover for Ease of Maintenance, Check and Relief Valve Seats are Replaceable without the Use of Special Tools, Internal Relief Valve for Right and Left Hand Installations, Investment Cast 316 Stainless Steel Assembly for Corrosion Resistance, Modular Check Construction Featuring Nonreversible Checks with Captured Springs for Simplified Servicing, True Line-Sized Construction Allows the Check Modules to Open Further Allowing Dirt and Debris to Pass More Freely Reducing Check Fouling
Flow 60 gpm
Seat Material Stainless Steel
Shut-Off Valve Included Ball Valve
Handle Material 304 Stainless Steel
Operating Temperature - Maximum 180 Degrees F
Includes Flow Meter No Flow Meter
Handle Type Tee
Includes Flood Protection No Flood Protection
Connection Type - Side 2 NPT
Operating Temperature - Minimum 33 Degrees F
Includes Freeze Sensor No Freeze Sensor
Maximum Pressure - Operating 175 psi
Connection Gender - Side 1 Female
Connection Type - Side 1 NPT
Backflow Preventer Type Reduced Pressure Assembly (RP)
Manufacturer Warranty 1 yr
Number of Test Ports 4
Connection Gender - Side 2 Female
Includes Strainer No Strainer
Hazard Protection Level High Health Hazard
For Media Water
Valve Series SS009
