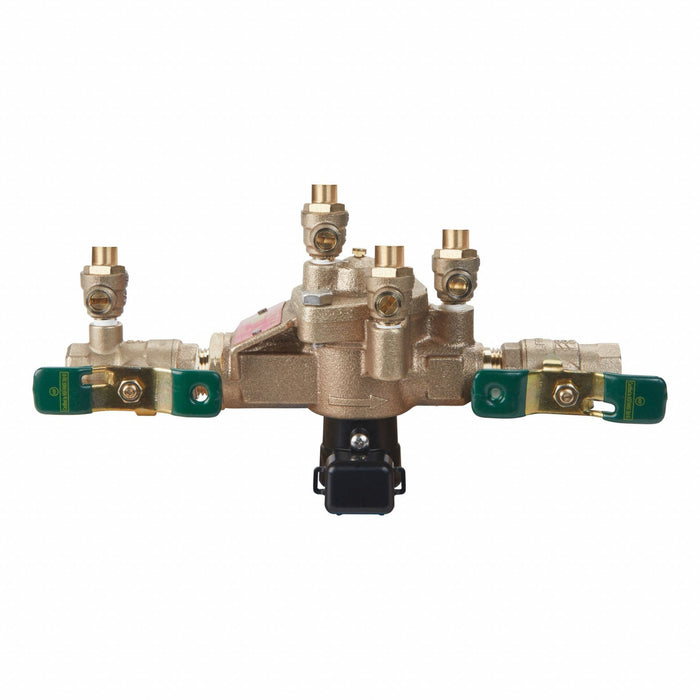

Watts 1/2 009-QT Backflow Preventer

Watts 1/2 009-QT Backflow Preventer, Reduced Pressure Zone, 1/2 in FNPT, 175 psi, Bronze, 009 Series, Standard (No Strainer)

UPC: | Harmonization / Schedule B : 8481.30.1090

Country of Origin: United States | Shipping Weight: 4.2 lbs

$988.31 - $988.31
$988.31
$988.31 - $988.31
$988.31

Backflow Preventer, Size 1/2", 175 psi

Body Material Bronze
Temp. Range 33 Degrees to 180 Degrees F
Standards ASSE 1013, AWWA C511-92, CSA B64.4, IAPMO File No. 1563, UPC, USC-FCCCHR
Max. Pressure 175 psi
Flow 15 gpm
Seat Material Plastic
Connection NPT
Features Ball Valve Test Cocks, Captured Springs for Safe Maintenance, Compact, Space Saving Design, Internal Relief Valve for Reduced Installation Clearances, Large Body Passages Provides Low Pressure Drop, No Special Tools Required for Servicing, Replaceable Seats for Economical Repair, Single Access Cover and Modular Check Construction for Ease of Maintenance, Top Entry - All Internals Immediately Accessible
Max. Temp. 180 Degrees F
Manufacturer Warranty 1 yr
Includes Flood Protection No Flood Protection
Number of Test Ports 4
Connection Type - Side 1 NPT
Shut-Off Valve Included Ball Valve
Includes Flow Meter No Flow Meter
Operating Temperature - Minimum 33 Degrees F
Includes Freeze Sensor No Freeze Sensor
Maximum Pressure - Operating 175 psi
For Media Water
Connection Gender - Side 1 Female
Connection Type - Side 2 NPT
Includes Strainer No Strainer
Operating Temperature - Maximum 180 Degrees F
Hazard Protection Level High Health Hazard
Backflow Preventer Type Reduced Pressure Assembly (RP)
Connection Gender - Side 2 Female
Handle Type Tee
Valve Series 9
