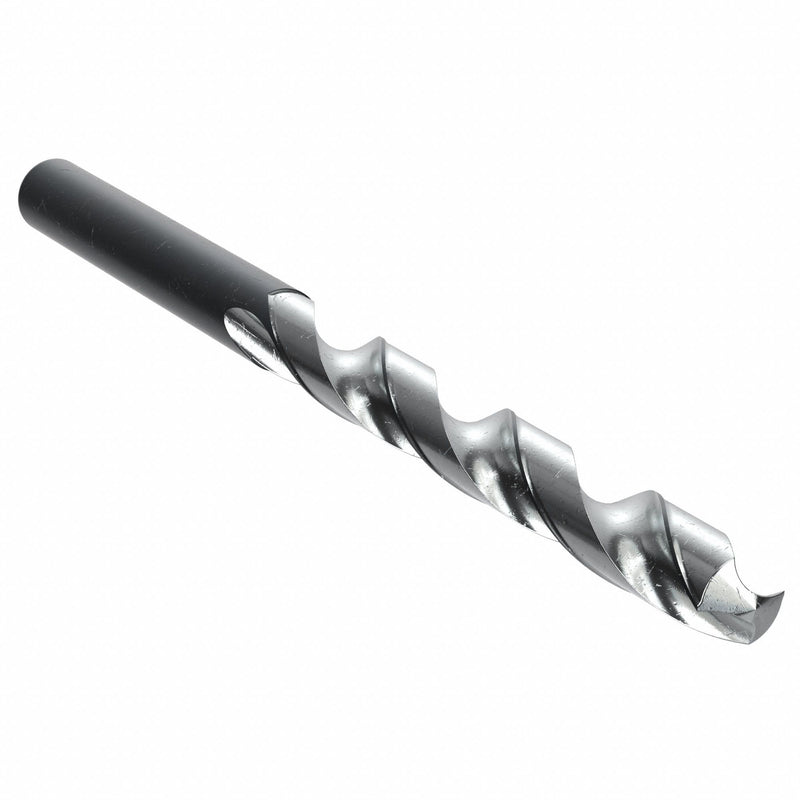

Walter A1247-3/8IN Jobber Length Drill Bit, 3/8 in, 130° Point, HSS, Bright Uncoated, Straight Shank, 2-Flute, Conical Point

Walter A1247-3/8IN Jobber Length Drill Bit, 3/8 in, 130° Point, HSS, Bright Uncoated, Straight Shank, 2-Flute, Conical Point

UPC: | Harmonization / Schedule B : 8207.50.2030

Country of Origin: France | Shipping Weight: 0.05 lbs

$63.48 - $63.48
$63.48
$63.48 - $63.48
$63.48

Jobber Length Drill Bit, Drill Bit Size 3/8 in, Drill Bit Point Angle 130 Degrees, High Speed Steel, Bright (Uncoated), Decimal Equivalent 0.3750, Fractional Inch, Drill Bit Point Type Conical Point, Non-Coolant Through

Overall Length 133 mm
Drill Bit Size 3/8 in
Shank Dia. 9.5 mm
Depth:Dia. Ratio 8xD
Flute Length 87 mm
Drill Bit Dimension Type Fractional Inch
Shank Length 46 mm
Drilling Depth 71.00mm
Drill Point Length 2.22mm
Drill Length Class Jobber-Length
Drill Diameter Tolerance H8
Maximum Drilling Depth 87 mm
Drill Bit Point Angle 130 Degrees
Number of Flutes 2
Material - Machining High Speed Steel
Cutting Direction Right Hand
Finish - Machining Bright (Uncoated)
Shank Type - Machining Straight
Number of Pieces 1
Flute Type Spiral
Application For Steel, Stainless Steel, Cast Iron, Non-Ferrous Metals, Super Alloy
Decimal Equivalent 0.3750
List Number A1247
Standards DIN 338
Coolant Fed Non-Coolant Through
Primary Material Application Aluminum, Brass, Bronze, Cast Iron, Copper, Nickel, Stainless Steel, Steel, Titanium
Drill Bit Point Type Conical Point
Sheeter Drill No
Material Grade - Machining General Purpose
Series Alpha X-E
Secondary Material Application ISO Code O
Secondary Material Application Composite
Measurement System Fractional Inch
Primary Material Application ISO Code K, M, N, P, S
Country of Origin France
