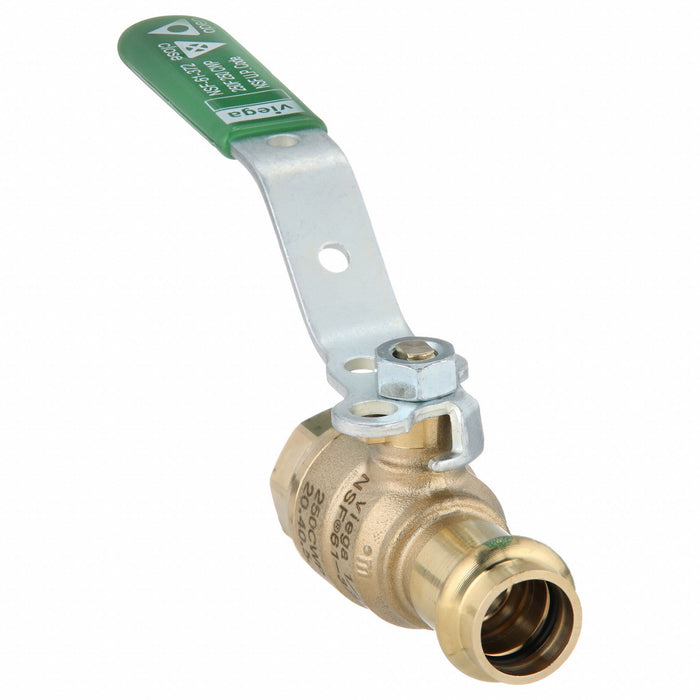

Viega Propress 79970 Manual Two-Way Ball Valve, 1/2 in, Bronze

Viega Propress 79970 Manual Two-Way Ball Valve, 1/2 in, Bronze, Press x FNPT

UPC: 691514799704 | Harmonization / Schedule B : 8481.80.1085

Country of Origin: Germany | Shipping Weight: 0.46 lbs

$76.71 - $76.71
$76.71
$76.71 - $76.71
$76.71

Manual Two-Way Ball Valve, Body Material Bronze, For Media Potable Water, Valve Construction Two-Piece, Nominal Valve Size 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 200 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating -29.2 in Hg, Ball Material Stainless Steel, Ball Port Style Full Port, Handle - Locking Locking, Handle Type Lever

Ball Material 316 stainless steel
Body Style Inline
Ball Port Style Full Port
Valve Ways 2-Way
Valve Structure Two-Piece
For Media Potable Water
Connection Type FNPT x Press
Temp. Range 0 Degrees F to 250 Degrees F
Seat Material PTFE
Stem Material Brass
Max. Pressure 200 PSI CWP
Ball Valve Product Group Manual
Stem Type Blowout Resistant
Handle Material Metal
Compliance ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 61, NSF 372, ULC/ORD 213
Handle Type Lever
Features Smart Connect, Zero Lead
Body Material Bronze
Standards 13D and 13R
Seal Material EPDM
NSF Certifications for Food and Drinking Water NSF 61
Color - Valve Handle Green
Operating Temperature - Maximum 250 Degrees F
Vented Ball Valve Non-Vented
Connection Type - Side 1 Press
Vacuum Service Rating -29.2 in Hg
Connection Gender - Side 2 Female
Maximum Pressure - Steam 15 PSI WSP
Connection Type - Side 2 NPT
3-A Standard Compliance Not Rated
Maximum Pressure - Combustible Gas Not Rated
Handle - Locking Locking
Operating Temperature - Minimum 0 Degrees F
Valve Series ProPress
Restrictions This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
Country of Origin Germany
