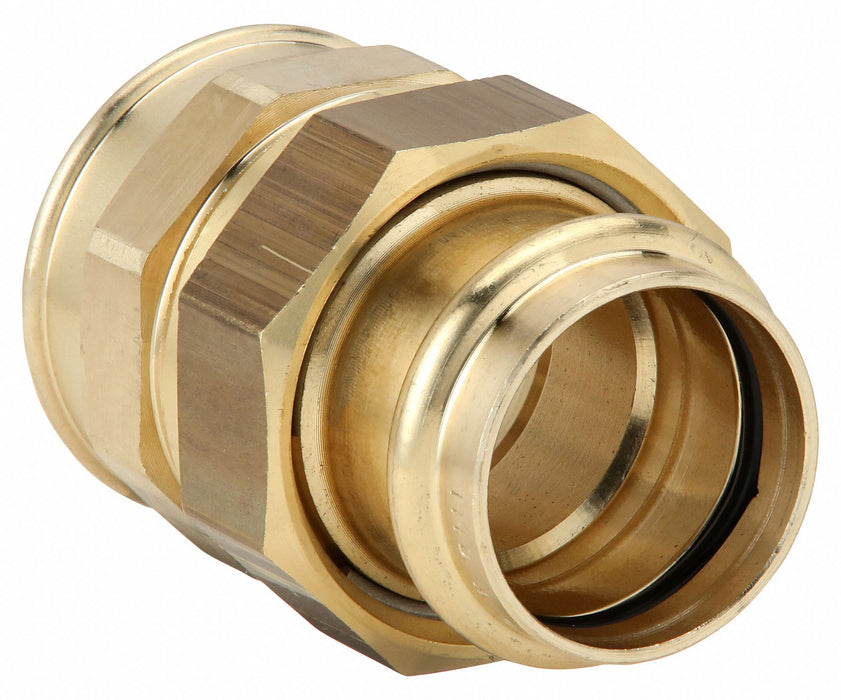

Viega Propress 79705 Crimp Union Fitting, 3/4 in

Viega Propress 79705 Crimp Union Fitting, Straight, 3/4 in Press-Fit x 3/4 in FNPT, Bronze, EPDM, 200 psi

UPC: 691514797052 | Harmonization / Schedule B : 7412.20.0085

Country of Origin: Germany | Shipping Weight: 0.45 lbs

$41.65 - $41.65
$41.65
$41.65 - $41.65
$41.65

Crimp Union Fitting, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type FNPT, Fitting Side A Copper Tube Size 3/4 in, Fitting Material Bronze, Fitting Side B Pipe Size 3/4 in, O-Ring Material EPDM, Specific Fitting Shape Straight Union, Overall Length 2 7/16 in, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F, Standards ASTM B75, ASTM B88

Tube Fitting Material Bronze
Specific Fitting Shape Straight Union
Fitting Connection Type Press x Female Pipe Thread
Basic Pipe Fitting Shape Union
Specific Pipe Fitting Shape Union
Max. Pressure 200 psi
Basic Pipe Fitting Material Metal
Pipe Fitting Connection Type Press x Female Pipe Thread
Compliance ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Temp. Range 0 Degrees to 250 Degrees F
Standards ASTM B75, ASTM B88
Application Potable Water
Fitting Shape Straight
O-Ring Material EPDM
Fitting Side B Connection Type FNPT
Fitting Material Bronze
Fitting Side A Connection Type Press-Fit
Minimum Operating Temperature 0 Degrees F
Maximum Operating Pressure 200 psi
Maximum Operating Temperature 250 Degrees F
Operating Pressure - Maximum 200 psi
Fitting Side 2 Connection Type FNPT
Connector Type Union
Operating Temperature - Minimum 0 Degrees F
For Media Type Potable Water
Operating Temperature - Maximum 250 Degrees F
Fitting Side 1 Connection Type Press-fit
Center Stop Type Dimple Center Stop
Restrictions This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
Country of Origin Germany
