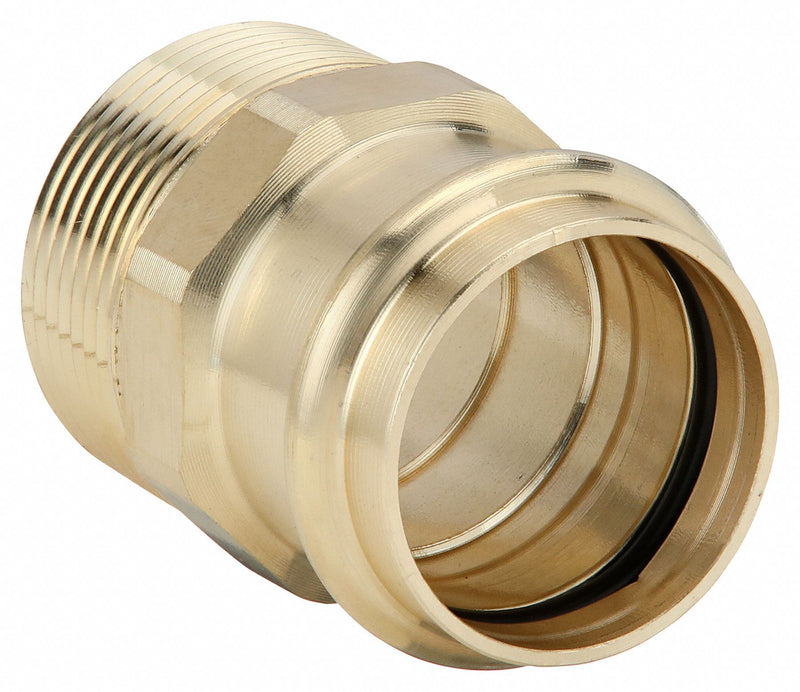

Viega Propress 79260 Crimp Adapter Fitting, Straight, 1-1/4 in CTS x 1-1/4 in MNPT, Bronze, EPDM, Press-fit, 200 psi

Viega Propress 79260 Crimp Adapter Fitting, Straight, 1-1/4 in CTS x 1-1/4 in MNPT, Bronze, EPDM, Press-fit, 200 psi

UPC: 691514792606 | Harmonization / Schedule B : 7412.20.0085

Country of Origin: Germany | Shipping Weight: 0.35 lbs

$40.37 - $40.37
$40.37
$40.37 - $40.37
$40.37

Crimp Adapter Fitting, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type MNPT, Fitting Side A Copper Tube Size 1 1/4 in, Fitting Material Bronze, Fitting Side B Pipe Size 1 1/4 in, O-Ring Material EPDM, Specific Fitting Shape Straight Adapter, Overall Length 2 3/8 in, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F, Standards ASTM B75, ASTM B88

Tube Size 1-1/4 in x 1-1/4 in
Pipe Size - Pipe Fitting 1-1/4 in x 1-1/4 in
Pipe Size (Fittings) 1-1/4" x 1-1/4"
Fitting Side B Pipe Size 1 1/4 in
Overall Length 2 3/8 in
Fitting Side A Copper Tube Size 1 1/4 in
Fitting Side 1 Copper Tube Size 1 1/4 in
Fitting Side 2 Pipe Size 1 1/4 in
Tube Fitting Material Bronze
Specific Fitting Shape Straight Adapter
Fitting Connection Type Press x Male Pipe Thread
Temp. Range 0 Degrees to 250 Degrees F
Standards ASTM B75, ASTM B88
Compliance ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Basic Pipe Fitting Shape Adapter
Max. Pressure 200 psi
Pipe Fitting Connection Type Press x Male Pipe Thread
Basic Pipe Fitting Material Metal
Specific Pipe Fitting Shape Adapter
Maximum Operating Pressure 200 psi
O-Ring Material EPDM
Fitting Material Bronze
Fitting Side B Connection Type MNPT
Minimum Operating Temperature 0 Degrees F
Maximum Operating Temperature 250 Degrees F
Fitting Side A Connection Type Press-Fit
Fitting Shape Straight
Application Potable Water
Operating Temperature - Minimum 0 Degrees F
For Media Type Potable Water
Operating Pressure - Maximum 200 psi
Connector Type Adapter
Fitting Side 1 Connection Type Press-fit
Fitting Side 2 Connection Type MNPT
Operating Temperature - Maximum 250 Degrees F
Center Stop Type Dimple Center Stop
Country of Origin Germany
