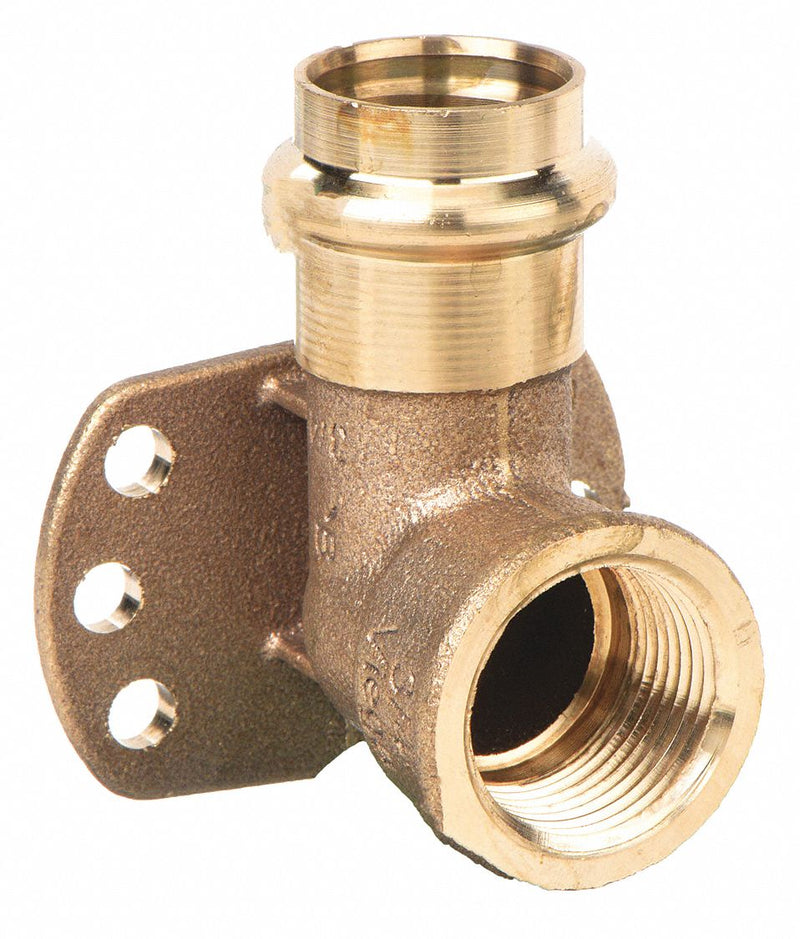

Viega Propress 79195 Crimp Elbow Fitting, 90° Drop Ear Elbow, 3/4 in CTS x 3/4 in Pipe, Press-fit x FNPT, Bronze

Viega Propress 79195 Crimp Elbow Fitting, 90° Drop Ear Elbow, 3/4 in CTS x 3/4 in Pipe, Press-fit x FNPT, Bronze

UPC: 691514791951 | Harmonization / Schedule B : 7412.20.0090

Country of Origin: Germany | Shipping Weight: 0.45 lbs

$51.30 - $51.30
$51.30
$51.30 - $51.30
$51.30

Crimp Elbow Fitting, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type FNPT, Fitting Side A Copper Tube Size 3/4 in, Fitting Material Bronze, Fitting Side B Pipe Size 3/4 in, O-Ring Material EPDM, Specific Fitting Shape 90 Degrees Drop Ear Elbow Adapter, Overall Length 2 13/16 in, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F

Tube Fitting Material Bronze
Specific Fitting Shape 90 Degrees Drop Ear Elbow Adapter
Fitting Connection Type Press x Female Pipe Thread
Pipe Fitting Connection Type Press x Female Pipe Thread
Compliance ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Specific Pipe Fitting Shape 90 Degrees Elbow
Temp. Range 0 Degrees to 250 Degrees F
Basic Pipe Fitting Shape Elbow
Max. Pressure 200 psi
Basic Pipe Fitting Material Metal
Standards ASTM B75, ASTM B88
Fitting Shape 90 Degrees Elbow
Fitting Side A Connection Type Press-Fit
Maximum Operating Pressure 200 psi
Application Potable Water
Minimum Operating Temperature 0 Degrees F
Fitting Side B Connection Type FNPT
O-Ring Material EPDM
Fitting Material Bronze
Maximum Operating Temperature 250 Degrees F
Fitting Side 1 Connection Type Press-fit
Operating Temperature - Maximum 250 Degrees F
Operating Temperature - Minimum 0 Degrees F
Fitting Side 2 Connection Type FNPT
For Media Type Potable Water
Operating Pressure - Maximum 200 psi
Connector Type Adapter
Center Stop Type Dimple Center Stop
