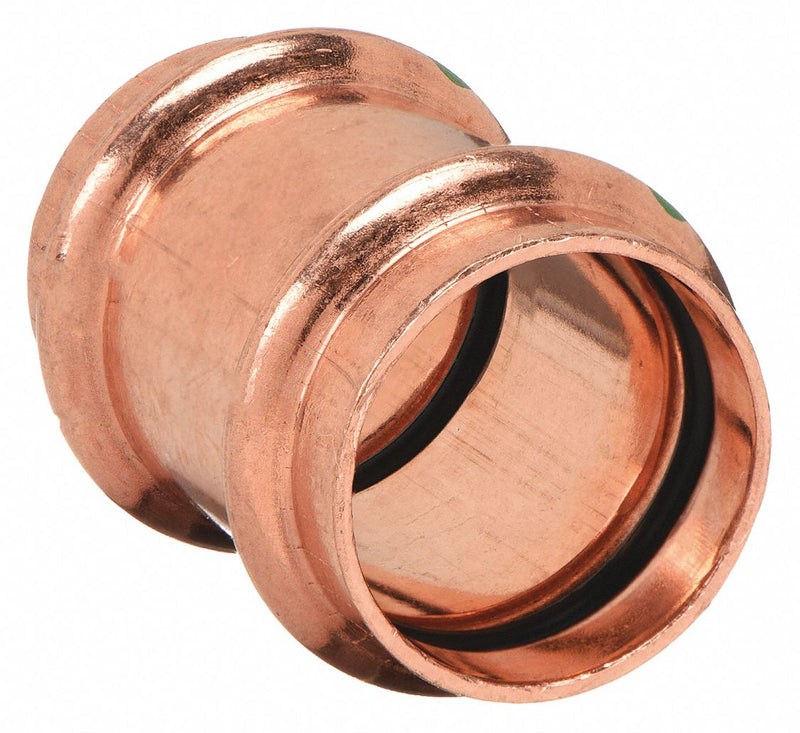

Viega Propress 78187 Crimp Coupling Fitting

Viega Propress 78187 Crimp Coupling Fitting, Straight, 1-1/4 in CTS x 1-1/4 in CTS, Copper

UPC: 691514781877 | Harmonization / Schedule B : 7412.10.0000

Country of Origin: Germany | Shipping Weight: 0.25 lbs

$26.58 - $26.58
$26.58
$26.58 - $26.58
$26.58

Crimp Coupling Fitting, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Side A Copper Tube Size 1 1/4 in, Fitting Side B Copper Tube Size 1 1/4 in, Fitting Material Copper, O-Ring Material EPDM, Specific Fitting Shape Straight Coupling, Overall Length 2 7/32 in, Includes Center Stop No Center Stop, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Maximum Operating Pressure 200 psi

Tube Fitting Material Copper
Specific Fitting Shape Straight Coupling
Fitting Connection Type Press x Press
Pipe Fitting Connection Type Press x Press
Standards ASTM B75, ASTM B88
Compliance ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Basic Pipe Fitting Material Metal
Max. Pressure 200 psi
Temp. Range 0 Degrees to 250 Degrees F
Basic Pipe Fitting Shape Coupling
Specific Pipe Fitting Shape Coupling
Fitting Side B Connection Type Press-Fit
Maximum Operating Pressure 200 psi
Fitting Material Copper
O-Ring Material EPDM
Minimum Operating Temperature 0 Degrees F
Fitting Side A Connection Type Press-Fit
Fitting Shape Straight
Application Potable Water
Maximum Operating Temperature 250 Degrees F
Includes Center Stop No Center Stop
Operating Pressure - Maximum 200 psi
Operating Temperature - Minimum 0 Degrees F
Center Stop Type No Center Stop
Fitting Side 1 Connection Type Press-fit
Fitting Side 2 Connection Type Press-fit
For Media Type Potable Water
Operating Temperature - Maximum 250 Degrees F
Connector Type Coupling
Restrictions This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
Country of Origin Germany
