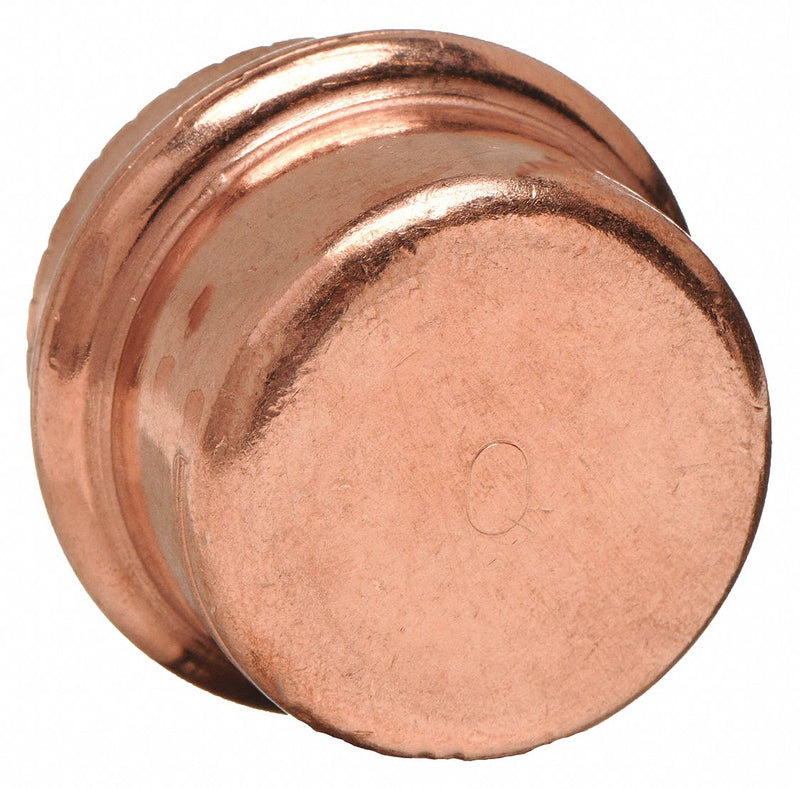

Viega Propress 77717 Crimp Fitting Cap

Viega Propress 77717 Crimp Fitting Cap, 3/4 in CTS, Press-fit, Copper, EPDM O-Ring

UPC: 691514777177 | Harmonization / Schedule B : 7412.10.0000

Country of Origin: Germany | Shipping Weight: 0.08 lbs

$22.44 - $22.44
$22.44
$22.44 - $22.44
$22.44

Crimp Fitting Cap, Application Potable Water, Compatible Copper Tube Size 3/4 in, Fitting Connection Type Press-fit, Fitting Material Copper, O-Ring Material EPDM, Specific Fitting Shape Cap, Overall Length 1 1/16 in, Includes Center Stop Not Applicable, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F, Standards CRN, CSA, FM, IAPMO (UPC), ICC, NFPA 13D, NFPA 13R, NSF/ANSI 372, NSF/ANSI 61, PHCC, UL Listed, Minimum Operating Temperature 0 Degrees F

Tube Fitting Material Copper
Specific Fitting Shape Cap
Fitting Connection Type Press-fit
Standards CRN, CSA, FM, IAPMO (UPC), ICC, NFPA 13D, NFPA 13R, NSF/ANSI 372, NSF/ANSI 61, PHCC, UL Listed
Specific Pipe Fitting Shape Cap
Compliance ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Basic Pipe Fitting Shape Cap
Basic Pipe Fitting Material Metal
Temp. Range 0 Degrees to 250 Degrees F
Pipe Fitting Connection Type Press
Max. Pressure 200 psi
Fitting Shape Cap
Fitting Material Copper
Maximum Operating Temperature 250 Degrees F
Application Potable Water
Maximum Operating Pressure 200 psi
Minimum Operating Temperature 0 Degrees F
O-Ring Material EPDM
Operating Pressure - Maximum 200 psi
Operating Temperature - Maximum 250 Degrees F
For Media Type Potable Water
Operating Temperature - Minimum 0 Degrees F
Restrictions This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
Country of Origin Germany
