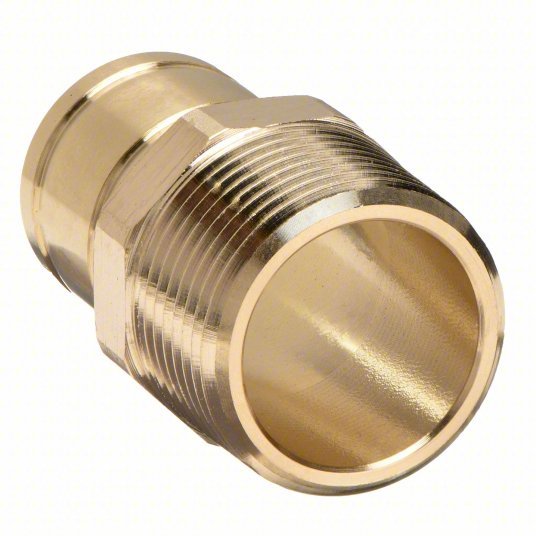

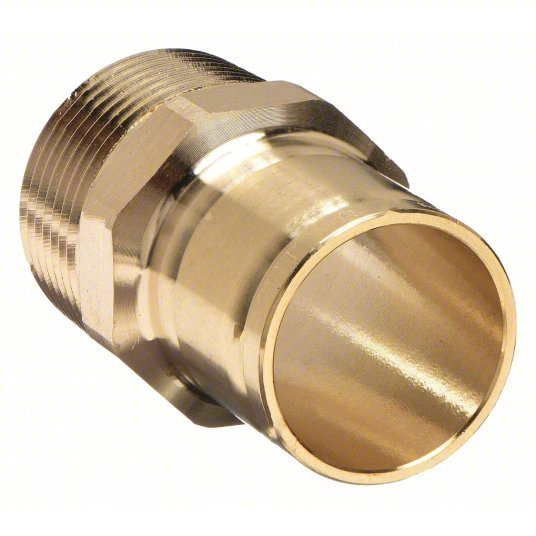

Viega 79395 Adapter Bronze, FTG x MNPT, 3/4 in Copper Tube Size, 3/4 in Pipe Size

Name: Viega 79395 Adapter Bronze, FTG x MNPT, 3/4 in Copper Tube Size, 3/4 in Pipe Size
Brand: Viega Propress
Price: 36.34 USD
Availability: InStock

UPC: 691514793955 | Harmonization / Schedule B : 7419.80.5050

Country of Origin: Germany | Shipping Weight: 0.16 lbs

$36.34 - $36.34

$36.34

$36.34 - $36.34

$36.34

Adapter, Application Potable Water, Fitting Side A Connection Type FTG, Fitting Side B Connection Type MNPT, Fitting Side A Copper Tube Size 3/4 in, Fitting Material Bronze, Fitting Side B Pipe Size 3/4 in, O-Ring Material EPDM, Specific Fitting Shape Straight Adapter, Overall Length 2 1/16 in, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F

Item	Adapter
Tube Fitting Material	Bronze
Specific Fitting Shape	Straight Adapter
Fitting Connection Type	Street x Male Pipe Thread
Max. Pressure	200 psi
Temp. Range	0 Degrees to 250 Degrees F
Basic Pipe Fitting Shape	Adapter
Standards	ABS Type Approval, CRN, CRN 0A14541.5 A/B/C, CSA, CSA MSE-13, FM Class 1920, IAPMO, IAPMO PS 117, ICC, ICC-ES PMG-1037, NFPA 13, NFPA 13D, NFPA 13R, NSF/ANSI 372, NSF/ANSI 61, PHCC, UL, ULC/ORD 213
Specific Pipe Fitting Shape	Adapter
Compliance	ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Pipe Fitting Connection Type	Street x Male Pipe Thread
Basic Pipe Fitting Material	Metal
Fitting Material	Bronze
Maximum Operating Temperature	250 Degrees F
Stop and Shape	Straight Adapter
End Connection Type	Fitting, Threaded
Fitting Shape	Adapter
Maximum Operating Pressure	200 psi
Minimum Operating Temperature	0 Degrees F
Fitting Side A Connection Type	FTG
Application	Potable Water
Connection Type	FTG x MNPT
O-Ring Material	EPDM
Fitting Side B Connection Type	MNPT
