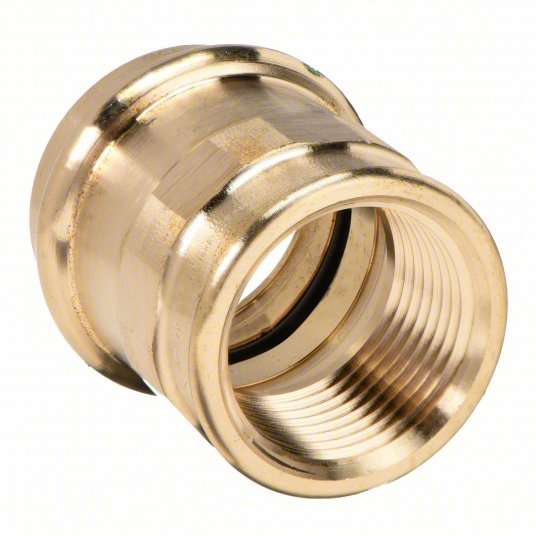

Viega 79315 Adapter Bronze, Press-Fit x FNPT, 3/4 in Copper Tube Size, 3/4 in Pipe Size

Name: Viega 79315 Adapter Bronze, Press-Fit x FNPT, 3/4 in Copper Tube Size, 3/4 in Pipe Size
Brand: Viega Propress
Price: 11.21 USD
Availability: InStock

UPC: 691514793153 | Harmonization / Schedule B : 7412.20.0090

Country of Origin: Germany | Shipping Weight: 0.17 lbs

$11.21 - $11.21

$11.21

$11.21 - $11.21

$11.21

Adapter, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type FNPT, Fitting Side A Copper Tube Size 3/4 in, Fitting Material Bronze, Fitting Side B Pipe Size 3/4 in, O-Ring Material EPDM, Specific Fitting Shape Straight Adapter, Overall Length 1 13/16 in, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F, Standards ASTM B75, ASTM B88

Item	Adapter
Tube Fitting Material	Bronze
Specific Fitting Shape	Straight Adapter
Fitting Connection Type	Press x Female Pipe Thread
Compliance	ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Specific Pipe Fitting Shape	Adapter
Max. Pressure	200 psi
Temp. Range	0 Degrees to 250 Degrees F
Basic Pipe Fitting Shape	Adapter
Standards	ASTM B75, ASTM B88
Basic Pipe Fitting Material	Metal
Pipe Fitting Connection Type	Press x Female Pipe Thread
Connection Type	Press-Fit x FNPT
O-Ring Material	EPDM
Maximum Operating Pressure	200 psi
Fitting Shape	Adapter
Fitting Material	Bronze
Minimum Operating Temperature	0 Degrees F
End Connection Type	Press, Threaded
Fitting Side B Connection Type	FNPT
Fitting Side A Connection Type	Press-Fit
Stop and Shape	Straight Adapter
Application	Potable Water
Maximum Operating Temperature	250 Degrees F
