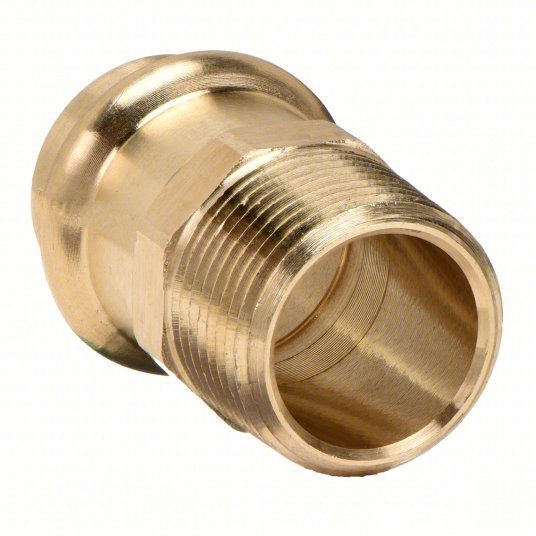

Viega 79235 ProPress Adapter Bronze, Press-Fit x MNPT, 3/4 in Copper Tube Size, 1 in Pipe Size

Name: Viega 79235 ProPress Adapter Bronze, Press-Fit x MNPT, 3/4 in Copper Tube Size, 1 in Pipe Size
Brand: Viega Propress
Price: 29.8 USD
Availability: InStock

UPC: 691514792354 | Harmonization / Schedule B : 7419.80.5050

Country of Origin: Germany | Shipping Weight: 0.24 lbs

$29.80 - $29.80

$29.80

$29.80 - $29.80

$29.80

Adapter, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type MNPT, Fitting Side A Copper Tube Size 3/4 in, Fitting Material Bronze, Fitting Side B Pipe Size 1 in, O-Ring Material EPDM, Specific Fitting Shape Straight Adapter, Overall Length 2 3/32 in, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F, Standards ASTM B75, ASTM B88

Item	Adapter
Tube Fitting Material	Bronze
Specific Fitting Shape	Straight Adapter
Fitting Connection Type	Press x Male Pipe Thread
Basic Pipe Fitting Shape	Adapter
Max. Pressure	200 psi
Specific Pipe Fitting Shape	Adapter
Compliance	ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Basic Pipe Fitting Material	Metal
Pipe Fitting Connection Type	Press x Male Pipe Thread
Temp. Range	0 Degrees to 250 Degrees F
Standards	ASTM B75, ASTM B88
Fitting Material	Bronze
Connection Type	Press-Fit x MNPT
Stop and Shape	Straight Adapter
Application	Potable Water
Maximum Operating Temperature	250 Degrees F
Fitting Side B Connection Type	MNPT
Maximum Operating Pressure	200 psi
End Connection Type	Press, Threaded
Fitting Shape	Adapter
Fitting Side A Connection Type	Press-Fit
O-Ring Material	EPDM
Minimum Operating Temperature	0 Degrees F
