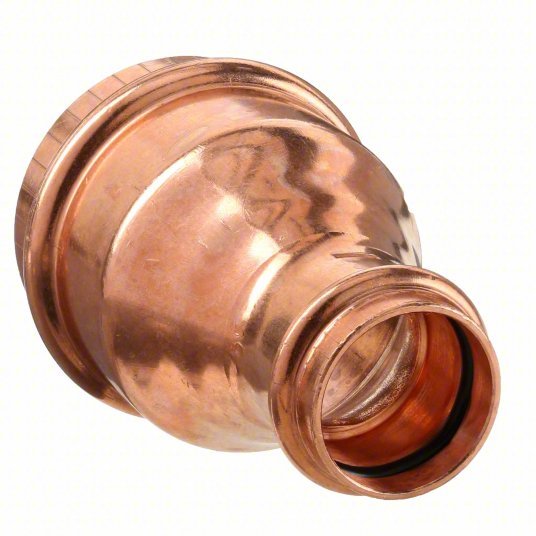

Viega 78157 Reducer Copper, Press-Fit x Press-Fit, 1 1/4 in x 1 in Copper Tube Size

Name: Viega 78157 Reducer Copper, Press-Fit x Press-Fit, 1 1/4 in x 1 in Copper Tube Size
Brand: Viega Propress
Price: 35.58 USD
Availability: InStock

UPC: 691514781570 | Harmonization / Schedule B : 7412.10.0000

Country of Origin: United States | Shipping Weight: 0.24 lbs

$35.58 - $35.58

$35.58

$35.58 - $35.58

$35.58

Reducer, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Side A Copper Tube Size 1 1/4 in, Fitting Side B Copper Tube Size 1 in, Fitting Material Copper, O-Ring Material EPDM, Specific Fitting Shape Straight Reducing Connector, Overall Length 2 1/2 in, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F, Standards ASTM B75, ASTM B88

Item	Reducer
Tube Fitting Material	Copper
Specific Fitting Shape	Straight Reducing Connector
Fitting Connection Type	Press x Press
Basic Pipe Fitting Shape	Reducer
Compliance	ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Specific Pipe Fitting Shape	Reducer
Pipe Fitting Connection Type	Press x Press
Standards	ASTM B75, ASTM B88
Temp. Range	0 Degrees to 250 Degrees F
Max. Pressure	200 psi
Basic Pipe Fitting Material	Metal
Fitting Side A Connection Type	Press-Fit
Maximum Operating Pressure	200 psi
Stop and Shape	Straight Reducing Connector
Application	Potable Water
Maximum Operating Temperature	250 Degrees F
End Connection Type	Press
Minimum Operating Temperature	0 Degrees F
Connection Type	Press-Fit x Press-Fit
Fitting Shape	Connector
Fitting Side B Connection Type	Press-Fit
Fitting Material	Copper
O-Ring Material	EPDM
