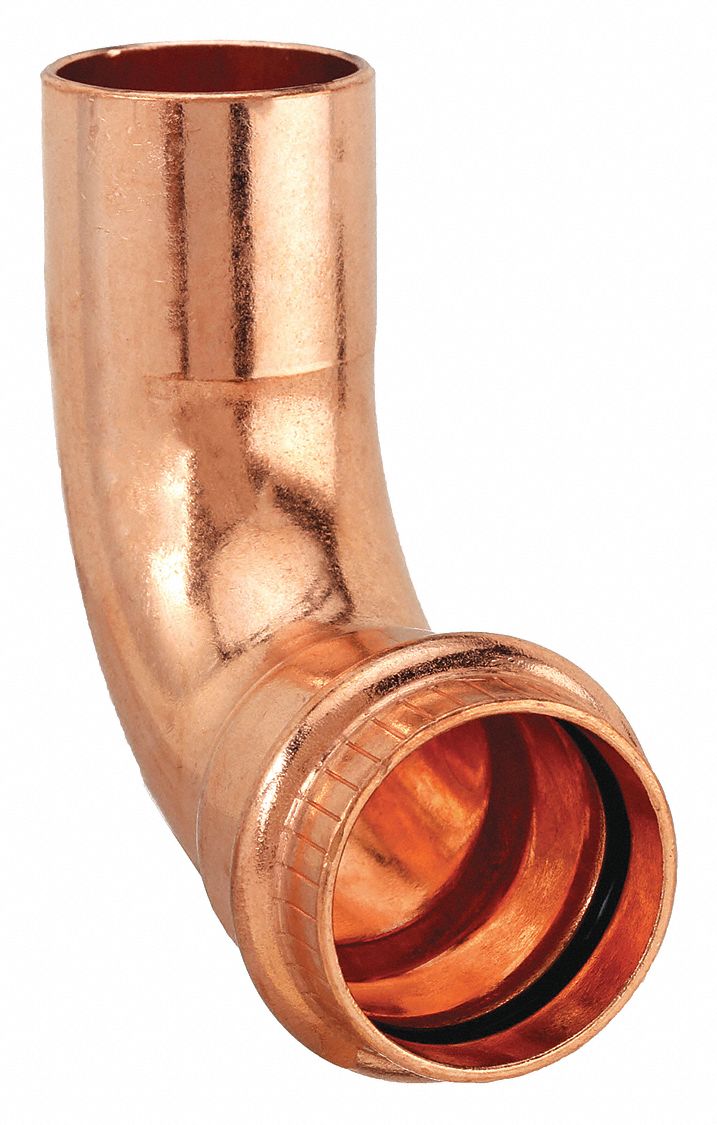

Viega 77057 90 Degree Street Elbow Copper, 1 in

Viega 77057 90 Degree Street Elbow Copper, Press-Fit x FTG, 1 in x 1 in Copper Tube Size

UPC: 691514770574 | Harmonization / Schedule B : 7412.10.0000

Country of Origin: United States | Shipping Weight: 0.25 lbs

$18.95 - $18.95
$18.95
$18.95 - $18.95
$18.95

Crimp Elbow Fitting, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type FTG, Fitting Side A Copper Tube Size 1 in, Fitting Side B Copper Tube Size 1 in, Fitting Material Copper, O-Ring Material EPDM, Specific Fitting Shape 90 Degrees Street Elbow Adapter, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F, Standards ASTM B75, ASTM B88

Tube Fitting Material Copper
Specific Fitting Shape 90 Degrees Street Elbow Adapter
Fitting Connection Type Press x Street
Temp. Range 0 Degrees to 250 Degrees F
Standards ASTM B75, ASTM B88
Max. Pressure 200 psi
Basic Pipe Fitting Material Metal
Compliance ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Specific Pipe Fitting Shape 90 Degrees Elbow
Basic Pipe Fitting Shape Elbow
Pipe Fitting Connection Type Press x Street
Minimum Operating Temperature 0 Degrees F
Maximum Operating Pressure 200 psi
Fitting Shape 90 Degrees Elbow
Maximum Operating Temperature 250 Degrees F
Fitting Side B Connection Type FTG
O-Ring Material EPDM
Application Potable Water
Fitting Side A Connection Type Press-Fit
Fitting Material Copper
Operating Pressure - Maximum 200 psi
Fitting Side 1 Connection Type Press-fit
Connector Type Adapter
For Media Type Potable Water
Operating Temperature - Maximum 250 Degrees F
Operating Temperature - Minimum 0 Degrees F
Center Stop Type Dimple Center Stop
Fitting Side 2 Connection Type FTG
Restrictions This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
Country of Origin United States
