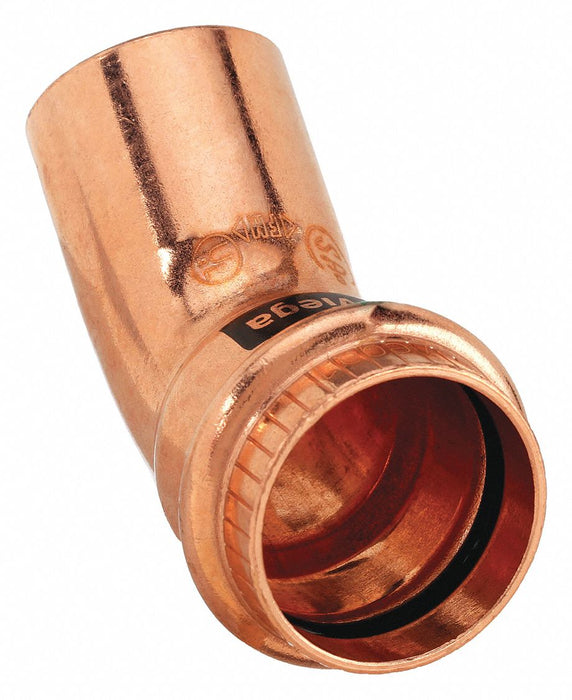

Viega 77053 45 Degree Street Elbow Copper Press Fitting, 3/4 in

Viega 77053 45 Degree Street Elbow Copper, Press-Fit x FTG, 3/4 in x 3/4 in Copper Tube Size

UPC: 691514770536 | Harmonization / Schedule B : 7412.10.0000

Country of Origin: Germany | Shipping Weight: 0.12 lbs

$6.94 - $6.94
$6.94
$6.94 - $6.94
$6.94

Crimp Elbow Fitting, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type FTG, Fitting Side A Copper Tube Size 3/4 in, Fitting Side B Copper Tube Size 3/4 in, Fitting Material Copper, O-Ring Material EPDM, Specific Fitting Shape 45 Degrees Street Elbow Adapter, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F, Standards ASTM B75, ASTM B88

Tube Fitting Material Copper
Specific Fitting Shape 45 Degrees Street Elbow Adapter
Fitting Connection Type Press x Street
Basic Pipe Fitting Shape Elbow
Max. Pressure 200 psi
Pipe Fitting Connection Type Press x Street
Basic Pipe Fitting Material Metal
Specific Pipe Fitting Shape 45 Degrees Elbow
Compliance ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Temp. Range 0 Degrees to 250 Degrees F
Standards ASTM B75, ASTM B88
Fitting Material Copper
Maximum Operating Pressure 200 psi
Maximum Operating Temperature 250 Degrees F
O-Ring Material EPDM
Fitting Side B Connection Type FTG
Minimum Operating Temperature 0 Degrees F
Fitting Side A Connection Type Press-Fit
Fitting Shape 45 Degrees Elbow
Application Potable Water
Connector Type Adapter
Operating Pressure - Maximum 200 psi
Operating Temperature - Maximum 250 Degrees F
Fitting Side 1 Connection Type Press-fit
Operating Temperature - Minimum 0 Degrees F
For Media Type Potable Water
Center Stop Type Dimple Center Stop
Fitting Side 2 Connection Type FTG
Restrictions This product has been certified by a third party to be compliant with the Safe Drinking Water Act requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
Country of Origin Germany
