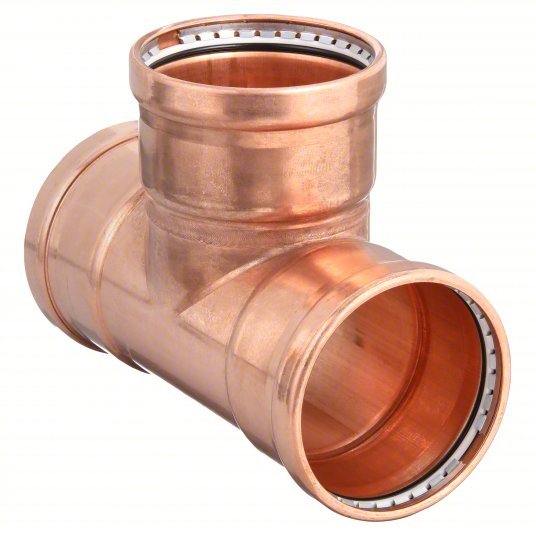

Viega 20683 XL Tee Copper, Press-Fit x Press-Fit x Press-Fit, EPDM O-Ring Material

Name: Viega 20683 XL Tee Copper, Press-Fit x Press-Fit x Press-Fit, EPDM O-Ring Material
Brand: Viega Propress
Price: 339.87 USD
Availability: InStock

UPC: 691514206837 | Harmonization / Schedule B : 7412.10.0000

Country of Origin: Germany | Shipping Weight: 2.28 lbs

$339.87 - $339.87

$339.87

$339.87 - $339.87

$339.87

XL Tee, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Side C Connection Type Press-Fit, Fitting Side A Copper Tube Size 2 1/2 in, Fitting Side B Copper Tube Size 2 1/2 in, Fitting Side C Copper Tube Size 2 1/2 in, Fitting Material Copper, O-Ring Material EPDM, Specific Fitting Shape Tee, Overall Length 7 1/32 in, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F, Standards ASTM B75, ASTM B88

Item	XL Tee
Tube Fitting Material	Copper
Specific Fitting Shape	Tee
Fitting Connection Type	Press x Press x Press
Standards	ASTM B75, ASTM B88
Pipe Fitting Connection Type	Press x Press x Press
Specific Pipe Fitting Shape	Tee
Compliance	ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Max. Pressure	200 psi
Temp. Range	0 Degrees to 250 Degrees F
Basic Pipe Fitting Shape	Tee
Basic Pipe Fitting Material	Metal
Maximum Operating Pressure	200 psi
Stop and Shape	Tee
Fitting Side C Connection Type	Press-Fit
Minimum Operating Temperature	0 Degrees F
Connection Type	Press-Fit x Press-Fit x Press-Fit
Compatible Tool Brand	Viega ProPress V2-Actuator, Viega ProPress XL-C Rings
Fitting Side A Connection Type	Press-Fit
End Connection Type	Press
Fitting Material	Copper
Fitting Shape	Tee
Application	Potable Water
Fitting Side B Connection Type	Press-Fit
O-Ring Material	EPDM
Maximum Operating Temperature	250 Degrees F
