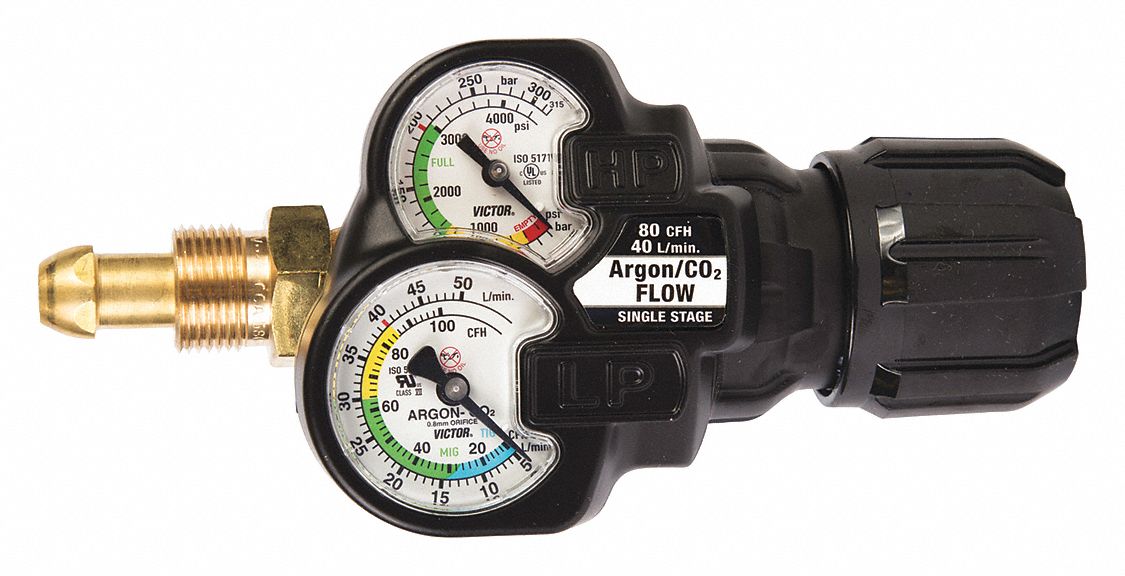

Victor 0781-3641 Gas Flow Gauge Regulator

Victor 0781-3641 Gas Flow Gauge Regulator, Argon/CO2, Single Stage, CGA 580 Inlet, 80 cfh

UPC: 716352604147 | Harmonization / Schedule B : 9032.81.0000

Country of Origin: Mexico | Shipping Weight: 3.45 lbs

$332.11 - $332.11
$332.11
$332.11 - $332.11
$332.11

Gas Regulator, Compatible Gas Type Argon, Carbon Dioxide, Mounting Type Cylinder, Inlet Connection Gender Female, Inlet Thread Direction Right Hand, Inlet Connection Size 0.825 In.-14, Inlet Connection Type NGO, Maximum Inlet Pressure 4,000 psig, Outlet Pressure (Maximum) 80 psig, Outlet Connection Gender Female, Outlet Connection Size 5/8 In.-18, Outlet Connection Type UNF, Argon Flow Rate (Maximum) 80 scfh, Carbon Dioxide Flow Rate (Maximum) 80 scfh, Number of Stages Single Stage

Compatible Gas Type Argon, Carbon Dioxide
Body Material Brass
Number of Stages Single Stage
Outlet Pressure (Maximum) 80 psig
Outlet Pressure (Minimum) 0 psig
Regulator Supply Type Cylinder
Diaphragm Material Neoprene
Supply Pressure Gauge 3,000 psi
Delivery Pressure Range 0 to 40 psi
Standards ASTM G175, CGA E-4, ETL Listed, UL252
Stages Single Stage
Application Industrial and General Fabrication, Light Fabrication, Repair and Maintenance, Structural Steel Fabrication
Duty Rating Heavy Duty
Features Slam Knob Absorbs Impact in the Event of Cylinder Fall
Control Type Knob
Carbon Dioxide Flow Rate (Minimum) 1 scfh
Inlet Connection Gender Female
Outlet Thread Direction Right Hand
Flowmeter Series Edge 2.0 ESS32
Argon Flow Rate (Minimum) 1 scfh
CGA Number CGA 580
Outlet Connection Gender Female
Inlet Connection Type NGO
Inlet Thread Direction Right Hand
Product Type Flow Gauge Regulator
Argon Flow Rate (Maximum) 80 scfh
Outlet Connection Type UNF
Maximum Gauge Inlet Pressure 4,000 psi
Carbon Dioxide Flow Rate (Maximum) 80 scfh
Inlet Pressure (Maximum) 4,000 psig
Country of Origin Mexico
