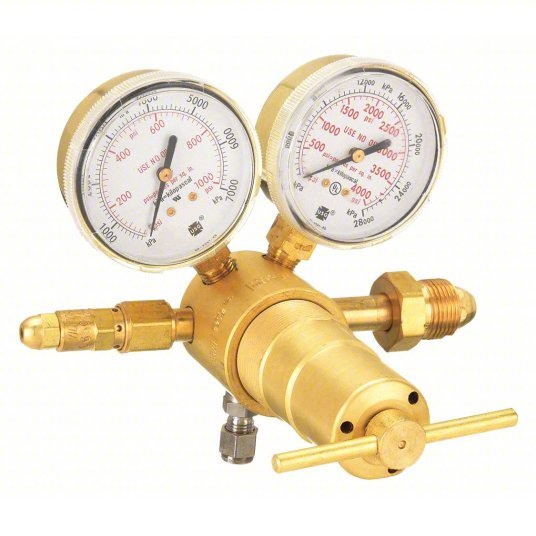

Victor 0781-1408 Gas Regulator Single Stage, CGA 580 Inlet, 1/4" Swagelok Outlet, 750 psig, Brass Diaphragm

Gas Regulator, Maximum Gauge Outlet Pressure 4,000 psig, Number of Stages Single Stage, Compatible Gas Type Argon, Helium, Nitrogen, Control Type T-Handle, Inlet Connection Type NGO, Inlet Connection Gender Male, Inlet Connection Size 0.965 In.-14, Outlet Pressure (Maximum) 750 psig, Outlet Connection Gender Male, Outlet Connection Size 1/4 in, Outlet Connection Type Swagelok, Body Material Brass, Diaphragm Material Brass, CGA Number CGA 580, Application High Pressure, Duty Rating Heavy Duty

Compatible Gas Type	Argon, Helium, Nitrogen
Body Material	Brass
Number of Stages	Single Stage
Outlet Pressure (Maximum)	750 psig
Outlet Pressure (Minimum)	50 psig
Regulator Supply Type	Cylinder
Regulator Application	High Pressure
Delivery Pressure Range	50 to 750 psi
Diaphragm Material	Brass
Supply Pressure Gauge	4,000 psi
Gauges Delivery Pressure	750 psi
Regulator Capacity	Heavy Duty
Standards	ETL Listed, UL252
Stages	Single Stage
Delivery	6500 scfh
Application	High Pressure
Duty Rating	Heavy Duty
Type	Single Stage Piston
Features	Delrin Cap Bushing for Smooth Adjustments, External Adjustable Relief Valves on F and G Range Models, Hydrogen Models Have Ventable Relief Valves, Ideally Suited for Pressure Vessel and Dead-End Testing, Sintered Inlet Filter
Outlet Connection Gender	Male
Flow Coefficient	0.1147
Control Type	T-Handle
Regulator Series	SR 4
Maximum Gauge Outlet Pressure	4,000 psig
CGA Number	CGA 580
Inlet Thread Direction	Right Hand
Inlet Connection Gender	Male
Inlet Connection Type	NGO
Inlet Pressure (Maximum)	3,000 psig
Outlet Connection Type	Swagelok
