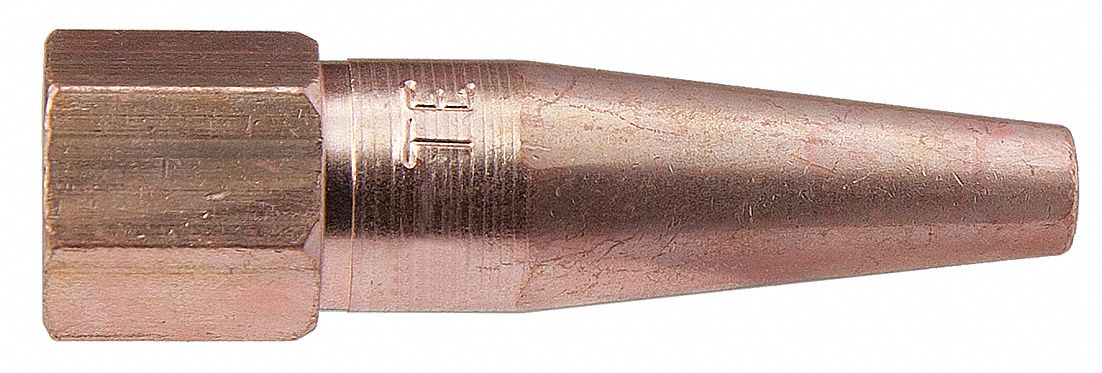

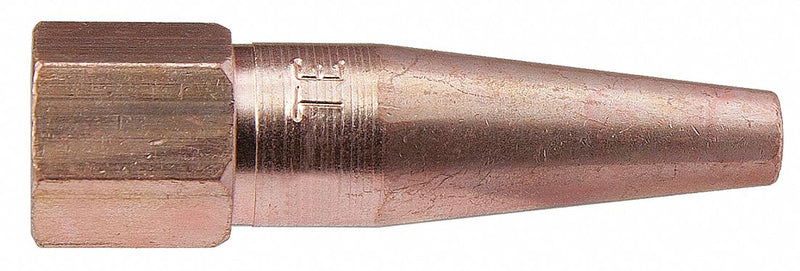

Welding Tip, Compatible Fuel Type Acetylene, Tip Series TE, Compatible Torch Series 100, 300, J, Drill Size 65, Tip Size 0, Minimum Welding Thickness 5/64 in, Maximum Welding Thickness 3/4 in, Minimum Brazing Capacity 1/8 in, Maximum Brazing Capacity 1/2 in, Compatible Manufacturer Victor, Compatible Tip Mixer Manufacturer Model Number UN, UN-1, UN-J, Application Brazing, Welding, Compatible Torch Manufacturer Part Number 100 FC, 100FP, 103-01FP, 315FC, H 315FC, J-28, J-40, WH350
| Compatible Gas Type |
Acetylene |
| Body Material |
Brass |
| Type |
1 Piece |
| For Use With |
Replacement Tip Ends 300, 100, J Series Torch Handles |
| Acetylene Flow |
2 to 4 scfh |
| Oxygen Pressure |
3 to 5 psig |
| Acetylene Pressure |
3 to 5 psig |
| Oxygen Flow |
4 to 6 scfh |
| Series |
TE |
| Fuel Pressure |
3 to 5 psig |
| Tip Type |
GPP |
| Flame Type |
Brazing Long Cone |
| Application |
Brazing, Welding |
| Tip Series |
TE |
| Minimum Brazing Capacity |
1/8 in |
| Maximum Brazing Capacity |
1/2 in |
| Maximum Oxygen Flow Rate |
6 scfh |
| Oxygen Pressure Rating (Minimum) |
3 psig |
| Compatible Torch Series |
100, 300, J |
| Fuel Pressure Rating (Maximum) |
5 psig |
| Oxygen Pressure Rating (Maximum) |
5 psig |
| Minimum Oxygen Flow Rate |
4 scfh |
| Compatible Manufacturer |
Victor |
| Tip Design |
One Piece |
| Fuel Pressure Rating (Minimum) |
3 psig |
| Compatible Torch Manufacturer Part Number |
100 FC, 100FP, 103-01FP, 315FC, H 315FC, J-28, J-40, WH350 |
| Compatible Tip |
UN, UN-1, UN-J |
| Regulator Series |
TE |
| Country of Origin |
United States |
