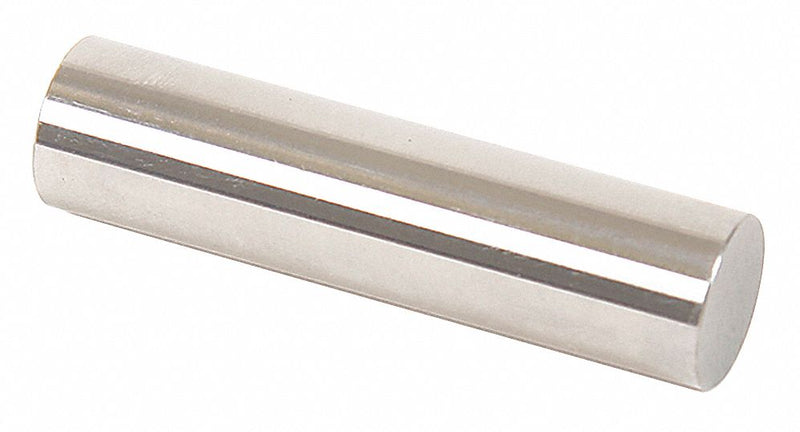

Vermont Gage 141199420 Class X Go Pin Gauge, Go (Plus), Inch, 0.9942 in Dia, 0.00006 in Tolerance

Vermont Gage 141199420 Class X Go Pin Gauge, Go (Plus), Inch, 0.9942 in Dia, 0.00006 in Tolerance

UPC: 662631209421 | Harmonization / Schedule B : 9031.80.4000

Country of Origin: United States | Shipping Weight: 0.5 lbs

$33.25 - $33.25
$33.25
$33.25 - $33.25
$33.25

Class X Go Pin Gauge, Material Steel, Finish Uncoated Steel, Diameter 0.9942 in, Diameter Increment 0.0001 in, Diameter Range 0.7601 in to 1.0000 in, Diameter Sub-Range 0.9901 in to 0.9950 in, Dimension Type Inch, Gauge Type Go (Plus), Included Certification Certificate of Accuracy with NIST Traceability, Surface Finish 4 Microinch or Better, Tolerance 0.00006 in, Tolerance Class X, Hardness RC 60/65, Long Form Calibration Certificate No, Overall Length 2 in, Standards ISO 17025

Diameter 0.9942"
Overall Length 2 in
Gage Diameter Range 0.7601" to 1.0000"
Gauge Diameter Range 0.7601 in to 1.0000 in
Diameter Sub-Range 0.9901 in to 0.9950 in
Dimension Type Inch
Diameter Range 0.7601 in to 1.0000 in
Diameter Increment 0.0001 in
Wire Rope Length 2 in
Length 2 in
Type Go (Plus)
Class X
Material Tool Steel - Rc 60/65
Finish 4 Microinch Finish or Better, Chrome Plated
Tolerance 0.00006 in
Application For Both the Shop Floor and Metrology Laboratory, Use as Masters to Calibrate Measuring Equipment or to Gage Parts Directly
Includes Certificate of Accuracy
Meets/Exceeds ISO 17025
Gauge Type Go (Plus)
Hardness RC 60/65
Tolerance Class X
Surface Finish 4 Microinch or Better
Standards ISO 17025
Long Form Calibration Certificate No
Included Certification Certificate of Accuracy with NIST Traceability
Country of Origin United States
