Vegawell 52 Submersible Pressure Transmitter with Ceramic Measuring Cell

Name: Vegawell 52 Submersible Pressure Transmitter with Ceramic Measuring Cell
Brand: Vega
SKU: KVUS89124741
Price: 2025.99 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 9026.10.29

Country of Origin: | Shipping Weight: 25 lbs

$2,025.99 - $2,025.99

$2,025.99

$2,025.99 - $2,025.99

$2,025.99

Quantity

Product name	VEGAWELL 52
Article code	WL52.XMGADTD1DD1X
Order code	US89124741

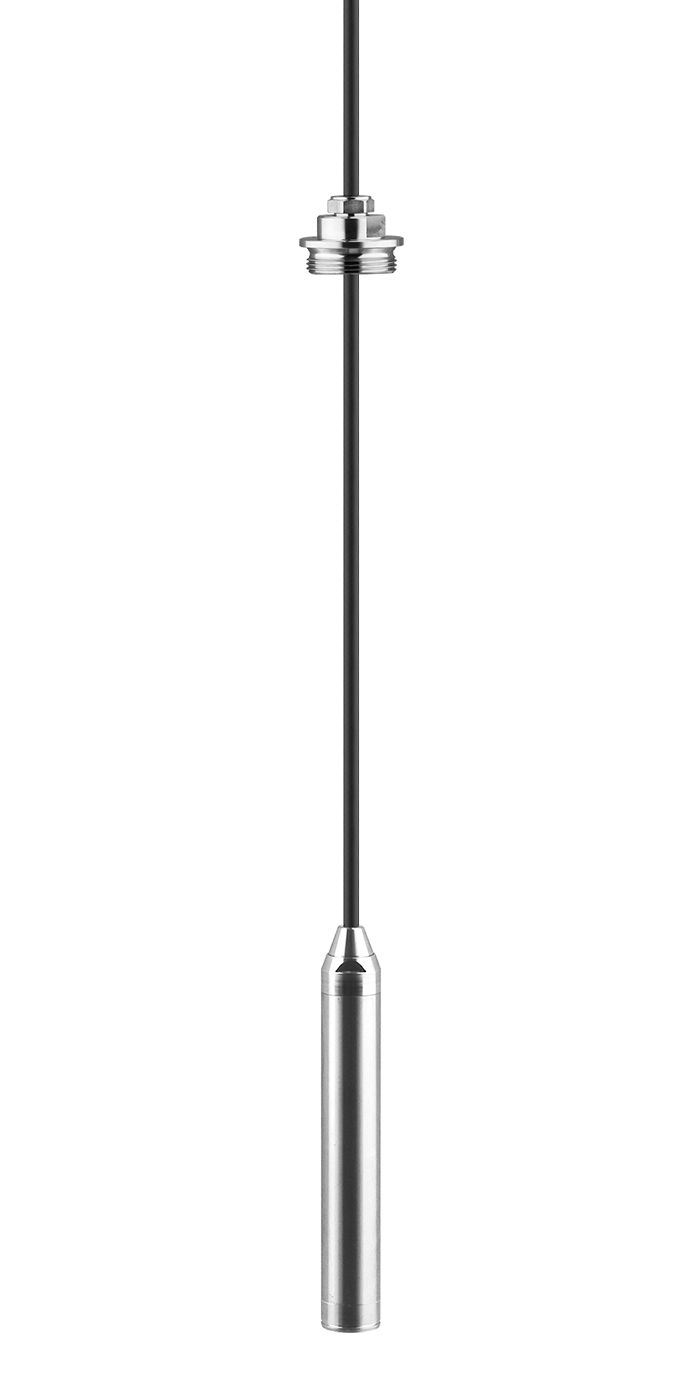

Submersible pressure transmitter with ceramic measuring cell

Application area

The VEGAWELL 52 is suitable for continuous level measurement of liquids. Typical applications are

measurements in water/waste water, deep wells and in the shipbuilding industry.

Your benefit

High reliability through maximum overload and vacuum resistance of the ceramic measuring cell
High plant availability through integrated overvoltage protection
Versatile use through robust housing and cable design

Unit for lengths	Metre / Millimetre
Approval directive / Scope	Shipbuilding / World-wide
Approval	Ship approval

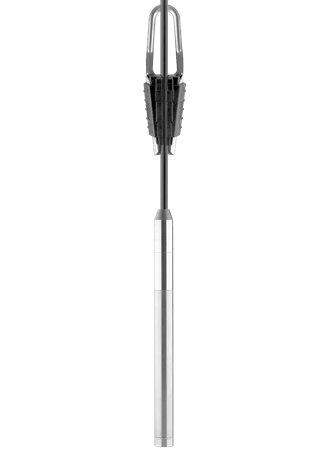

Fastening / Material	Adjustable screw connection for suspension cable G1½ PN3, ISO228-1 / 316L
Version / Process temperature	Suspension cable PUR / -20...+80°C
Length	individually selectable length (PE/PUR/FEP)
Total length	20.000 m
Transmitter material / Diameter	Duplex (1.4462) / 32mm
Sealing concept / Wetted seal	Single / FKM (VP2/A)
Unit for pressure	psi
Measuring range	rel. / 0...+15.0 psi
Electronics	Two-wire 4 ... 20 mA/HART + Four-wire PT100
Address setting	No
Accuracy class	0.20%
Customer-specific adjustment	No
- Unit	psi
- Initial value	0.000
- Final value	15.000
Linearization	No
Transmitter option	without
Customer Tag	without
Test certificate	with 5 measurement points
Foodstuff/Pharmaceutical certificate	without
Additional cleaning procedure	without
Certificate / Standard	without
Supply certificates	with goods
Operating instructions	EN - English
Number of operating instructions	1
Customs tariff number (HS code)	90261029
