Val - Matic 508ABFK Swing Flex Back Flow ActuatorCheck Valve Swing, Inline Valve Body, 8 in Pipe Size, Std - KVM Tools Inc.KV5LYK7

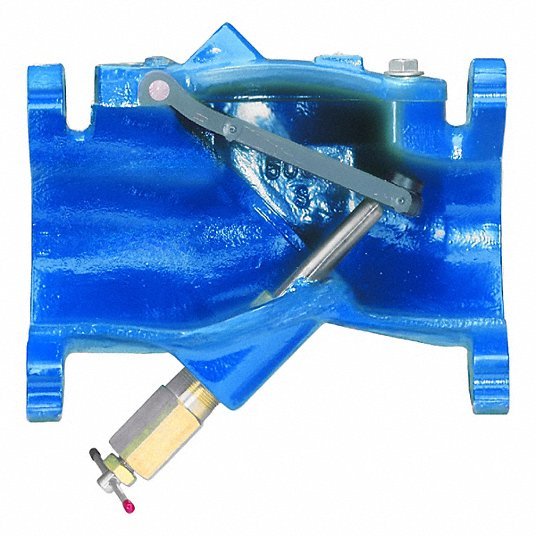

Val-Matic 508ABFK Swing Flex Back Flow ActuatorCheck Valve Swing, Inline Valve Body, 8 in Pipe Size, Std

UPC: | Harmonization / Schedule B : 8481.30.2010

Country of Origin: United States | Shipping Weight: 293 lbs

$7,467.72 - $7,467.72
$7,467.72
$7,467.72 - $7,467.72
$7,467.72

Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Swing Flex, Body Material - Valves Cast Iron, Pipe or Tube Size 8 in, Connection Type Flange x Flange, Cracking Pressure 0.25 psi, Mounting Orientation Horizontal, Vertical, Seal Material Metal, Max. Temp. - Valves 200 Degrees F, Min. Temp. - Valves 33 Degrees F, Max. Water Pressure - Valves 250 psi, Max. Steam Pressure - Valves Not Rated, Seat Material Buna-N, Flow - Valves 2,250 gpm, Full Flow - Valves No

Connection Type Flanged Connection Flanged
Body Material Cast Iron ASTM A 126 Max. Temp. - Valves 200 Degrees F
Max. Pressure 250 psig Mounting Position Horizontal
Item - Check Valves Check Valve Application - Valves General Purpose
Flow Design Single Seat Material - Check Valves Buna-N
Max. Steam Pressure - Valves Not Rated Seat Material Buna N
Standards ANSI B16.1 Class 125 Full Flow - Valves No
Mounting Orientation - Check Valves Horizontal, Vertical Body Material - Valves Cast Iron
Seal Material - Check Valves Metal Connection Type - Check Valves Flange x Flange
Mechanism and Body Design Inline Swing Flex Sub-Category Iron
Max. Water Pressure - Valves 250 psi Item Swing Flex Back Flow Actuator Check Valve
Max. Temp. -70 Degrees to 215 Degrees F Cracking Pressure - Check Valves 0.250 psi
Flow - Valves 2250 gpm Flow 2250 gpm
Max. Water Pressure 250 psi Cracking Pressure 0.25 psi
Material of Construction Cast Iron ASTM A 126 Min. Temp. - Valves 33 Degrees F
Seal Material Buna-N Temp. Range -32 to 210 Degrees F
Mounting Orientation Horizontal, Vertical Type Swing Flex, Back Flow Actuator
ANSI Flange Class Class 125 Silent Check Standard
3-A Standard Compliance Not Rated Check Mechanism Material Steel
Maximum Pressure - Operating 250 psi Operating Temperature - Minimum 33 Degrees F
NSF Certifications for Food and Drinking Water NSF 61 For Media Drinking Water
Connection Type - Side 1 Flange Connection Type - Side 2 Flange
Operating Temperature - Maximum 200 Degrees F Valve Body Style Inline
Check Mechanism Swing Vacuum Service Rating Not Rated
Maximum Pressure - Steam Not Rated Valve Series 500A
