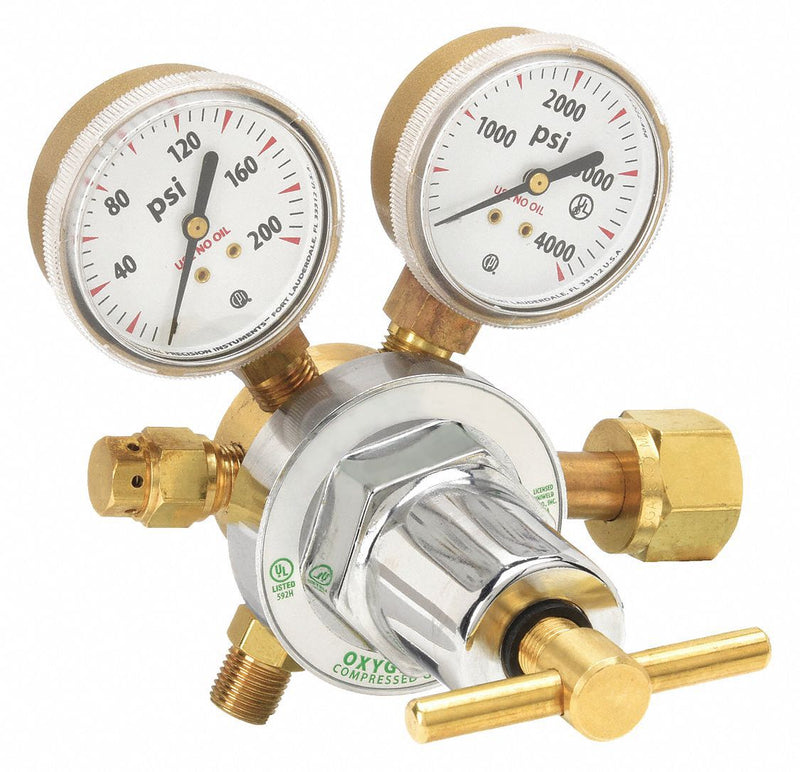

Uniweld RUH8210 Stage Regulator, Single Stage, Oxygen, CGA 540, 0.908-14 Inlet x 9/16-18 Outlet, 5 to 125 psig

Uniweld RUH8210 Stage Regulator, Single Stage, Oxygen, CGA 540, 0.908-14 Inlet x 9/16-18 Outlet, 5 to 125 psig

UPC: 688456110001 | Harmonization / Schedule B : 8515.90.2000

Country of Origin: United States | Shipping Weight: 3.7 lbs

$279.35 - $279.35
$279.35
$279.35 - $279.35
$279.35

Stage Regulator, Maximum Gauge Outlet Pressure 4,000 psig, Number of Stages Single Stage, Compatible Gas Type Oxygen, Control Type T-Handle, Inlet Connection Type NGO, Inlet Connection Gender Male, Inlet Connection Size 0.908 In.-14, Outlet Pressure (Maximum) 125 psig, Outlet Connection Gender Male, Outlet Connection Size 9/16 In.-18, Outlet Connection Type UNF, Body Material Brass, Body Finish Polished, Diaphragm Material Neoprene, CGA Number CGA 540, Hose Fitting Size B.

Outlet Connection Size 9/16"-18
Gauge Diameter 2 in
Inlet Connection Size 0.908"-14
Overall Length 9-7/16"
Hose Fitting Size B
CGA Number CGA 540
Compatible Gas Type Oxygen
Body Material Polished Brass
Number of Stages Single Stage
Outlet Pressure (Maximum) 125 psig
Outlet Pressure (Minimum) 5 psig
Regulator Supply Type Cylinder
Includes Easy-to-Read 2 in Gauge, Heavy Duty Mechanical Stem Type Seat and Nozzle Assembly, Polished Chrome Bonnet
Delivery Pressure Range 5 to 125 psi
Diaphragm Material Neoprene
Gauges Delivery Pressure 200 psi
Regulator Capacity Medium Duty
Supply Pressure Gauge 0 to 4000 psi
Regulator Application General Purpose
Delivery 5 to 125 psi
Application General Purpose
Standards UL Listed
Features Delrin Bushing for Smooth Flow Adjustment, Fine Mesh Filter Screen Between Inlet and Seat, Porous Metal Inlet Filter (Except CO2 Models), Pressure Relief Device for Low Pressure Gauge Protection Only
Duty Rating Heavy Duty
Inlet Pressure (Maximum) 3,000 psig
Outlet Connection Type UNF
Inlet Thread Direction Right Hand
Regulator Series RUH82
Bonnet Material Polished Chrome
Inlet Connection Gender Male
Outlet Thread Direction Right Hand
Inlet Connection Type NGO
Control Type T-Handle
Maximum Gauge Outlet Pressure 4,000 psig
Body Finish Polished
Outlet Connection Gender Male
Country of Origin United States
