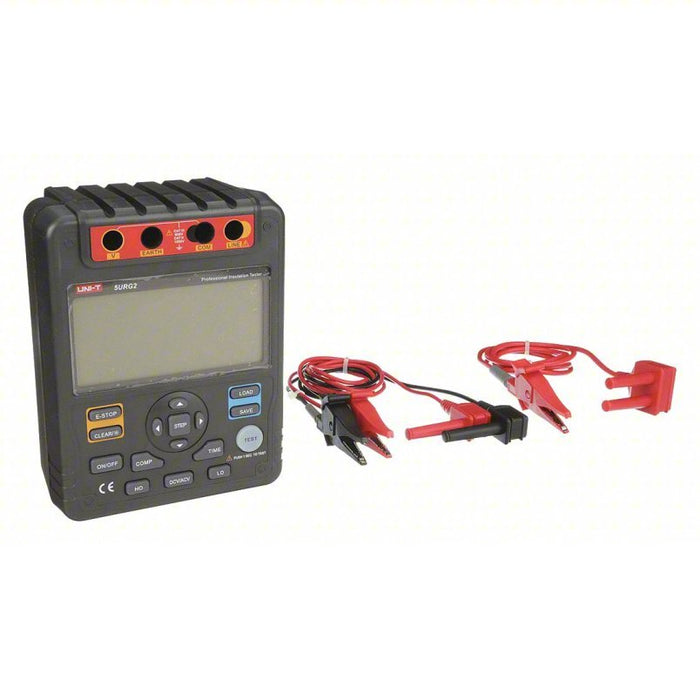

| Item |
Megohmmeter |
| Output Test Voltage |
100/250/500/1000V DC |
| Insulation Resistance Range |
0.1 megaohm to 10 gigohm |
| Accuracy |
+/-3% + 5 Digits |
| Resistance Range |
0.1 to 999.9 ohm |
| Display |
Backlit LCD with Bar Graph |
| Features |
Already Calibrated, Dielectric Absorption, Polarization Index, Short Circuit Current Protection, Timer |
| Power Source |
Battery, DC Adapter |

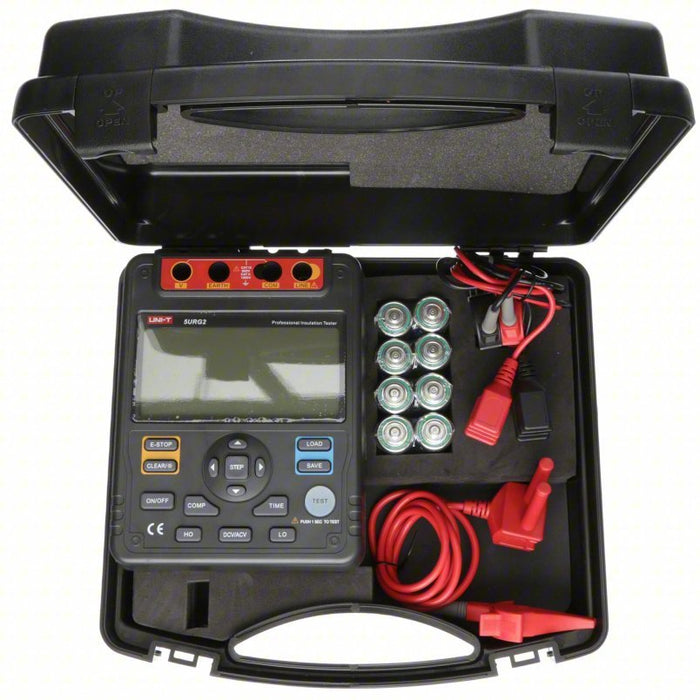

| Includes |
(2) Plugs Test Lead to One Alligator Clip, (8) 1.5V C Batteries, Tool Box |
| Data Logging |
18 Data Points |
| Auto Ranging |
Yes |
| Auto Power Off |
Yes |
| Safety Rating |
Cat III 600V |
| Calibration Certificate |
None |
| Leakage Current Range |
Not Applicable |
| Product Type |
Tester Only |
| Communication Protocol |
Not Applicable |
| Megohmmeter Features |
Data Logging |
| CAT Safety Rating |
CAT II 1000V, CAT III 600V |
| Parameters Measured |
AC Voltage, DC Voltage, Insulation Resistance, Low Resistance |
| Display Type |
Digital |
| Resistance Accuracy |
1% +/- 3 digits up to 999.9 ohm, 3% +/- 5 digits 1 kiloohm to 100 megaohm, 5% +/- 5 digits over 100 megaohm |
| Waterproof |
No |
| Minimum AC Current Measured |
Not Applicable |
| Capacitance Auto Discharge |
Yes |
| Test Voltage |
1,000V DC, 100V DC, 250V DC, 500V DC |
| Digital Memory Capacity |
32KB |
| Dustproof |
No |
| Insulation Resistance Resolution |
0.1 megaohm to 10 gigaohm |
| Maximum Ground Resistance Measurement |
Not Applicable |
| Includes Batteries |
Yes |
| Greater Than 30V Warning |
No |
| Maximum Insulation Resistance |
10 gigohm |
| Maximum DC Voltage Measured |
1,000 V |
| Alert Type |
Light |
| Minimum DC Voltage Measured |
30 V |
| Includes Software |
No |
| Minimum Capacitance Measured |
Not Applicable |
| IP Rating |
Not Applicable |
| Number of Batteries Required |
8 |
| Minimum Operating Temperature |
14 Degrees F |
| Bluetooth Compatible |
No |
| Minimum Insulation Resistance |
0.1 megaohm |
| Standards |
Not Applicable |
| Live Circuit Voltage |
Greater Than25V AC |
| Display Screen Type |
LCD |
| Battery Chemistry |
Carbon Zinc |
| Maximum Operating Temperature |
104 Degrees F |
| Minimum Ground Resistance Measurement |
Not Applicable |
| Test Current |
Less Than2mA |
| Number of Records Stored |
18 |
| Timed Ramp Voltage Test |
No |
| Minimum DC Current Measured |
Not Applicable |
| USB Data Download Included |
No |
| Input Impedance |
10 megaohm |
| PI/DAR Testing |
Yes |
| Pass/Fail Selection Limits |
Yes |
| Remote Test Probe Included |
No |
| Backlit Digital Display |
Yes |
| Testing Functions |
AC/DC Voltage, Insulation Resistance, Low Resistance |
| Number of Digits |
4 |
| Maximum DC Current Measured |
Not Applicable |
| Low Resistance Range |
0.1 to 999.9 ohm |
| Insulation Limit Alarm |
No |
| Operating Voltage |
12V |
| Maximum AC Voltage Measured |
750 V |
| Data Logger |
Yes |
| Maximum Capacitance Measured |
Not Applicable |
| Minimum AC Voltage Measured |
30 V |
| Maximum AC Current Measured |
Not Applicable |
