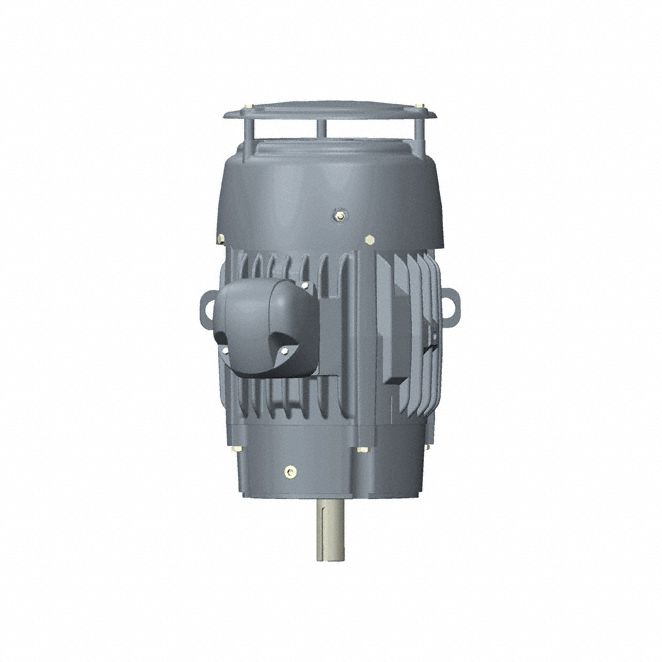

U.s. Motors C125P2FSCR General Purpose Motor, Rigid Base Mount, Totally Enclosed Fan Cooled, 125 hp, 1, 785 RPM

U.s. Motors C125P2FSCR General Purpose Motor, Rigid Base Mount, Totally Enclosed Fan Cooled, 125 hp, 1, 785 RPM

UPC: 786382107390 | Harmonization / Schedule B : 8523.29.5020

Country of Origin: Mexico | Shipping Weight: 1660.0 lbs

$21,633.06 - $21,633.06
$21,633.06
$21,633.06 - $21,633.06
$21,633.06

Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 125 HP, Nameplate RPM 1,785, Frame 444TSC, Voltage 380/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 147.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.4 Percent, 1,701-1,800, CSA Certified, ENERGY cURus

Length Less Shaft 38 1/4 in
Overall Length 42 3/4 in
Shaft Dia. 2 3/8 in
Shaft Length 4 1/2 in
Frame Size 444TSC
Shaft Diameter 2 3/8 in
Wire Rope Length 42 3/4 in
HP 125
Nameplate RPM 1,785
Voltage 380/460V AC
Motor Mounting Type Rigid Base
Full Load Amps 147.0 A
Frame 444TSC
Motor Service Factor 1.15
Motor Design Three-Phase
Motor Enclosure Design Totally Enclosed Fan Cooled
RPM Range 1,701-1,800
Phase Three
No. of Speeds 1
Motor Application General Purpose
Motor Shaft Rotation CW/CCW
Hz 60/50 Hz
Ins. Class F
Max. Ambient Temp. 40 Degrees C
Motor Frame Material Steel
Motor Mounting Position Horizontal
Motor Shaft Design Keyed
Nominal Efficiency 95.4 %
Standards CSA Certified, ENERGY cURus
CC Number CC030A
NEMA Design B
Inverter Rated Yes
Motor Thermal Protection None
HP @ 50Hz 125
Full Load Amps @ 50Hz 147.0 A
Weight 1,660 lb
Duty Cycle Continuous
Service Factor @ 50Hz 1.15
Voltage @ 50Hz 380V, 460V
Bearing Protection Double Shields
Removable Base Regreasable
RPM @ 50Hz 1,785/1,475
Inverter Rating Inverter Rated
Frame Material Steel
Mounting Position Horizontal
Nameplate RPM @ 50 Hz 1,180/980 RPM
Application General Purpose
Full Load Current @ 50 Hz 147.0 A
Frequency 60 Hz
Efficiency Rating NEMA Premium Efficiency
Ambient Temperature - Maximum 40 Degrees C
Motor Enclosure Type Totally Enclosed Fan Cooled
Number of Speeds 1
Full Load Current @ 60 Hz 147.0 A
Insulation Class F
NEMA Design Class B
Nameplate Service Factor @ 60 Hz 1.15
Bearing Lubrication Type Regreasable
Nameplate Service Factor @ 50 Hz 1.15
Nameplate Horsepower @ 50 Hz 125 hp
Shaft Design Keyed
Product Type General Purpose Motor
Nameplate Voltage @ 50 Hz 200V AC, 208V AC, 230V AC, 400V AC, 460V AC
Country of Origin Mexico
