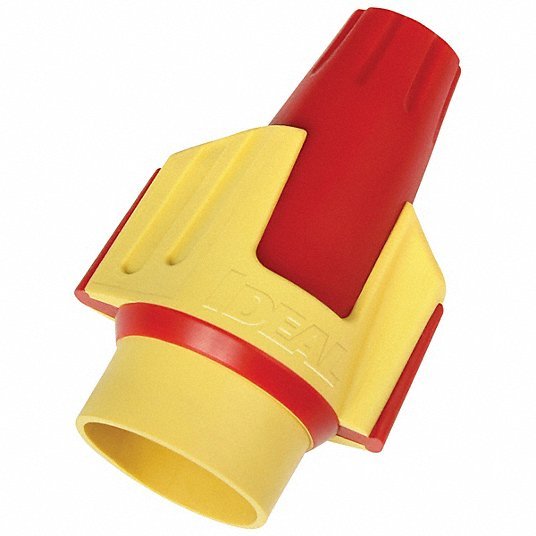

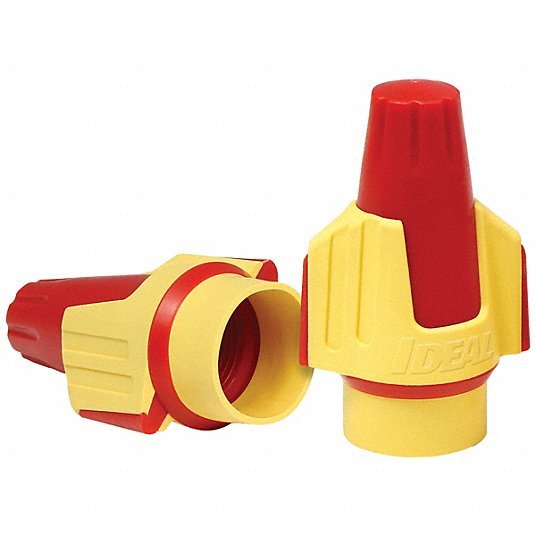

Twister 30-1047 Twist On Wire Connector, Red/Yellow, PK50

UPC: 783250802371 | Harmonization (Schedule B): 8536.90.4000

Original price $20.99 - Original price $20.99
Original price
$20.99 - $20.99
Current price $20.99
Twist On Wire Connector, Color Red/Yellow, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 1,000 V, Minimum Wire Combination (2) 18 AWG, Maximum Wire Combination (4) 10 AWG, Contact Finish Zinc, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 4, Standards CSA Certified, UL Listed, Wire Connector Style Wing, Fill Material Polypropylene, Maximum Single Wire Size 8 AWG, Minimum Single Wire Size 22 AWG

Color Red/Yellow
Wire Connector Style Wing
Fill Material Polypropylene
Standards CSA Certified, UL Listed
UL 94 Flammability Rating V-2
Special Features Expanding Square-Wire Spring and Polypropylene Shell Deliver a Secure Connection Every Time, Widest Wire Range of any Multi-Colored Wire Connectors in the Industry
Item Twist On Wire Connector
Maximum Voltage 1,000 V
Contact Finish Zinc
Contact Material Steel
Maximum Conductors 4
Maximum Wire Combination (4) 10 AWG
Maximum Operating Temperature 221 Degrees F
Minimum Wire Combination (2) 18 AWG
For Conductor Material Copper
High Temperature Application No
Package Quantity 50
