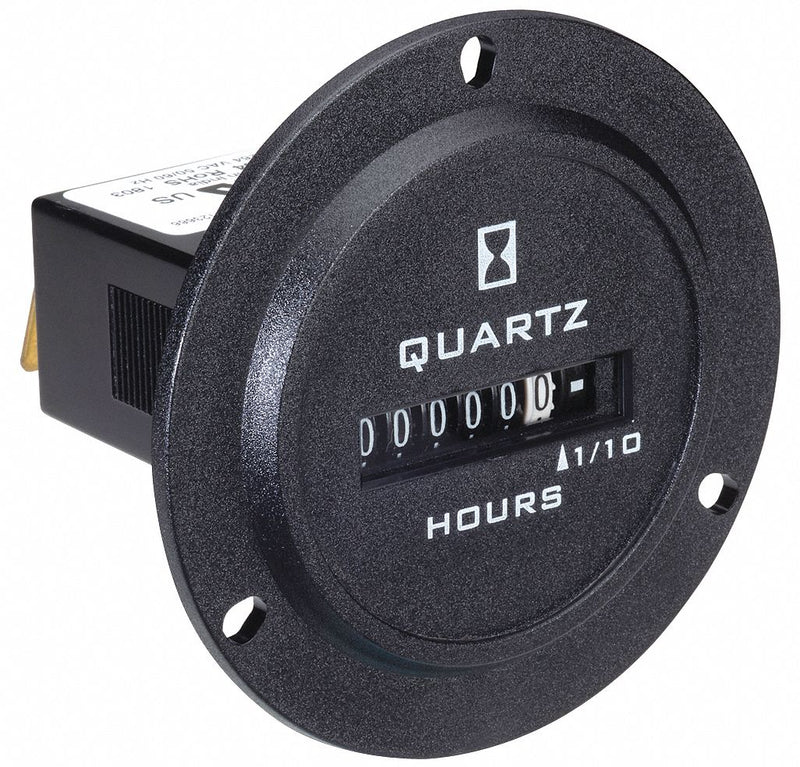

Trumeter 722-0004 Hour Meter, Hour Meters, Front Panel Mounting, Analog, 90 V AC – 264 V AC, Analog, Tenth

Trumeter 722-0004 Hour Meter, Hour Meters, Front Panel Mounting, Analog, 90 V AC – 264 V AC, Analog, Tenth

UPC: | Harmonization / Schedule B : 9107.00.8000

Country of Origin: India | Shipping Weight: 0.25 lbs

$56.11 - $56.11
$56.11
$56.11 - $56.11
$56.11

Hour Meter, Display Type Electromechanical, Time Range 0 to 99999.9, Bezel Face Size 2.80 in dia, Bezel Face Shape Round, Bezel Face Type Flange Mount, Elapsed Time To 99,999.9, Operating Voltage 120 to 240V AC, Hz 50/60 Hz, Number of Digits 6, Display Units Hours/Tenths, Bezel To Back Length 1.5 in, Ambient Temp. Range -40 Degrees to 185 Degrees F, Material of Construction Black Polymer, Reset Type No Reset, Temp. Range -40 Degrees to 185 Degrees F, Fits 2.0 in dia Panel Opening

Bezel Face Size 2.80 in dia
Bezel To Back Length 1.5 in
Overall Depth 2 3/8 in
Overall Diameter 2 3/4 in
Cutout Diameter 2 in
Bezel Face Diameter 2 3/4 in
Display Type Electromechanical
Reset Type No Reset
Display Units Hours/Tenths
Number of Digits 6
Operating Voltage 120 to 240V AC
Time Range 0 to 99999.9
Bezel Face Shape Round
Bezel Face Type Flange Mount
Temp. Range -40 Degrees to 185 Degrees F
Hz 50/60 Hz
Fits 2.0 in dia Panel Opening
Material of Construction Black Polymer
Ambient Temp. Range -40 Degrees to 185 Degrees F
Elapsed Time To 99,999.9
Fits Panel Cut Out 2.00 in dia
Mounting Method 3-Screw
Terminal Type Spade
Standards CE, CUL, RoHS, UKCA, UL
Digits 6 Digits
Power Type Electro-Mechanical
Timer Type Hour Meter
Housings 2-Hole, 3-Hole, Flush Rectangular, SAE Round, Square
Certifications CE, cUL, IP66, NEMA 4 & 12, ROHS, UKCA, UL
Input 90-264V AC
Reset Option Non-Reset
Hour Unit Increment Tenth
Counter Display Type Analog
Display Span - Maximum 99,999.9
Input Voltage - Minimum 90 V AC
Mounting Style Flange
Includes Mounting Hardware Included
Operating Temperature - Maximum 185 Degrees F
Operating Temperature - Minimum -40 Degrees F
Mount Securing Method 3-Screw
Input Voltage - Maximum 264 V AC
NEMA Enclosure Rating 12, 4
Country of Origin India
