Outlet Strip, Application Commercial and Industrial, Housing Material Aluminum, Total Number of Outlets 8, Max. Amps 12 A, Cord Length 25 ft, Number of Power Switches 1, Power Indicator Yes, Number of Outlet Rows 1, Receptacle Configuration NEMA 5-15R, Plug Configuration NEMA 5-15P, Wire Size 14 AWG, Mounting Style Keyhole, Color Gray, Medical Facility Use Outside Patient Care Areas (UL 1449), Number of Transformer Outlets 4, Number of Conductors 3, Voltage 120V AC
| Type |
Surge |
| Total Number of Outlets |
8 |
| Receptacle Configuration |
5-15R |
| Plug Configuration |
5-15P |
| Color |
Black/Light Gray |
| Gauge/Conductor |
14/3 |
| Standards |
Approvals RoHS; Approved for Canada by ETL; cUL / CSA (Canada); Exceeds IEEE 587 category A&B specifications; Tested to UL1449 3rd Edition by ETL; UL1449 3rd Edition (AC Suppression) |
| Max. Amps |
12A |
| Hz |
50/60 Hz |
| NEMA Plug Configuration |
NEMA 5-15P |
| Outlet Center Distance |
39.45mm Horizontal and 38.89mm Vertical |
| Number of Transformer Outlets |
4 |
| Footnotes |
13 |
| Noise Attenuation |
40 to 80dB |
| Rated Joules |
3,840 |
| Includes |
(4) Safety Covers |
| Coax Surge Protection |
No |
| For Use With |
Premium Protection Of Personal Computers With Peripherals, Network and Cad/Cam/Cae Workstations, Internetworking Accessories, Telecommunications Systems, Point Of Sale Equipment, Audio/Video and Home Theater Systems In Any Home |
| Voltage |
120VAC |
| Circuit Breaker |
1 |
| NEMA Receptacle Configuration |
NEMA 5-15R |
| Housing Material |
Metal |
| Max. Amps - Ext. Cords and Outlet Strips |
12.0 |
| Mounting Style |
Keyhole |
| NEMA Plug Configuration - Ext. Cords and Outlet Strips |
5-15P |
| Number of Total Outlets - Ext. Cords and Outlet Strips |
8 |
| Color - Ext. Cords and Outlet Strips |
Gray |
| Number of Outlets |
8 |
| Medical Grade |
No |
| Max. Surge Current |
150 kA |
| Plug Configuration - Ext. Cords and Power Strips |
Right Angle, No Swivel |
| NEC Cord Designation |
14 ga., SJT |
| Medical Facility Use |
Outside Patient Care Areas (UL 1449) |
| Outlet Surge Protection |
Yes |
| Power Indicator |
Yes |
| Communication Port |
None |
| Plug Style |
Right-Angle Plug |
| Number of Conductors |
3 |
| Application |
Commercial and Industrial |
| USB Charging Port |
0 |
| Frequency |
50/60 Hz |
| Features |
Automatic Shut-Off, Diagnostic LED(s), Integrated Keyhole Mounting Slots, Safe Thermal Fusing |
| Watts |
1440W |
| Output Voltage |
120 V AC |
| Surge Energy Rating |
3840 J |
| Input Voltage |
120 V AC |
| Maximum Line Current |
15 A |
| Package Contents |

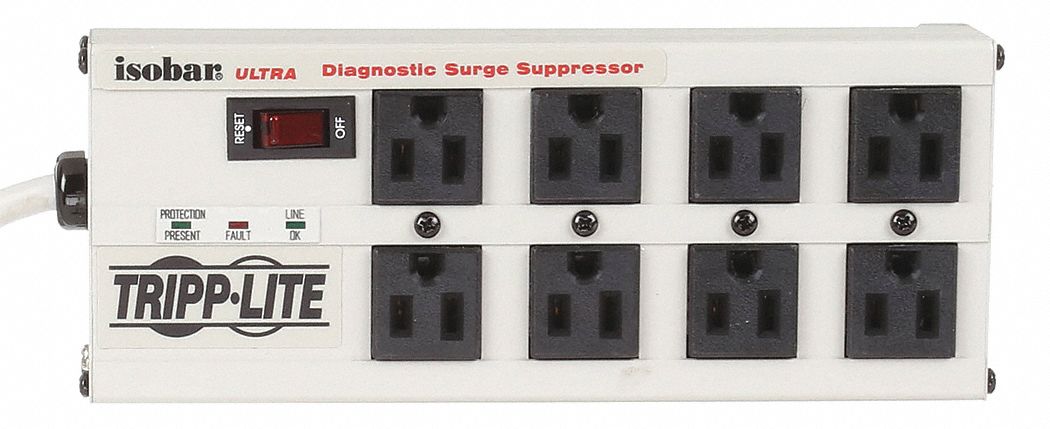

Isobar ISOBAR825ULTRA 8-Outlet Surge Suppressor, Set of 4 Outlet Safety Covers, Instruction Manual with Warranty Information |
| Power Handling |
1440 VA |
| Compatibility |
Computers, Networks, CAD/CAM/CAE Workstations, Internetworking Accessories, Telecommunications Systems, Point of Sale Equipment, Audio/Video & Home Theater Systems |
| Maximum Surge Current |
150 kA |
| Circuit Breaker (amps) |
12 |
| Frequency Compatibility |
50 / 60 Hz |
| Mounting Holes or Slots |
Yes |
| Outlets Measurement (Center to Center) |
Distance between horizontal outlets = 39.45mm; Distance between vertical outlets = 38.89mm |
| EMI / RFI Filtering |
40-80 dB |
| Diagnostic LED Details |
PROTECTION PRESENT (green), LINE FAULT (red) and LINE OK (green) |
| Package Includes |
ISOBAR825ULTRA Isobar 8-Outlet Surge Protector, 25 ft. Cord, Metal Housing;(4) Outlet safety covers;Owner's manual |
| Maximum Surge Amps |
150000 |
| Network (Ethernet) Protection |
No |
| Nominal Input Voltage(s) Supported |
120V AC |
| AC Suppression Response Time |
NM = 0 ns. CM = <1 ns |
| Input Cord Details |
SJT |
| AC Suppression Surge Current Rating |
97,000 amps (36,000 NM / 61,000 CM) |
| AC Suppression Components Used |
Metal oxide varistors, toroidal balanced chokes, ferrite rod-core inductors and VHF capacitors. |
| Isolated Filter Banks |
Yes |
| Material of Construction |
Metal |
| Immunity |
Conforms to IEE 587 / ANSI C62.41 |
| AC Suppression Joule Rating |
3840 |
| IEEE587 Cat. A Ringwave Let-Through |
Less than 35 volts |
| Output Receptacles |
(8) 5-15R |
| Diagnostic LED(s) |
Yes |
| Protection Modes |
Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression |
| Maximum Current |
12 A |
| Medical Facility Use UL Rating |
UL 1449 |
| Rated Energy Absorption |
3,840 J |
| Product Type |
Surge Protector Outlet Strip |
| Number of Circuit Breakers |
1 |
| Country of Origin |
China |
