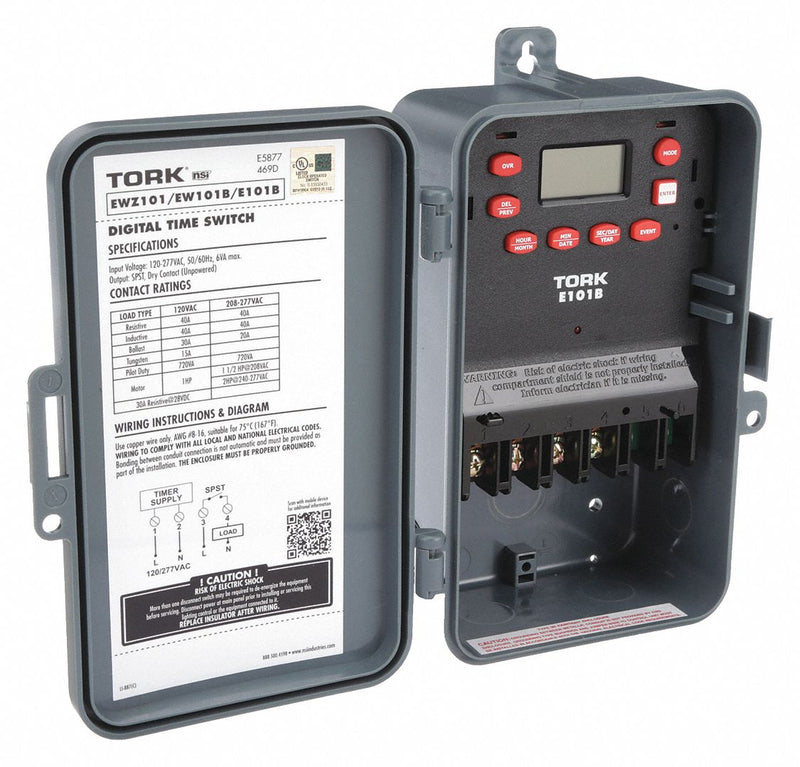

Tork E101B Electronic Timer, 24 hr, Not Astronomic, 120-277V AC, SPST, Digital

Tork E101B Electronic Timer, 24 hr, Not Astronomic, 120-277V AC, SPST, Digital

UPC: | Harmonization / Schedule B : 9107.00.8000

Country of Origin: China | Shipping Weight: 1.6 lbs

$313.83 - $313.83
$313.83
$313.83 - $313.83
$313.83

These timer switches have digital displays and buttons for selecting and viewing settings. Digital timer switches offer more precise programming capabilities, support detailed scheduling options, and are easier to program than electromechanical timer switches. They require minimal maintenance and are less likely to experience mechanical failures because they don't have any moving parts that can break down over time.

Applicable AC Voltage Ranges 120-277V AC
Application Fans; HVAC; Lighting; Pump Controls; Water Heaters
Astronomic Functionality Not Astronomic
Backup Device Capacitor
Backup Time 4 day
Body Color Gray
Body Material Plastic
Compatible Lighting Fluorescent; Incandescent; LED
Contact Form SPST
Current Rating 30 A
Digital Timer Functions On/Off
Display Qty 1
Display Sell UOM EA
Events Available 20
Horsepower @ 120V - Maximum 1 hp
Horsepower @ 240V - Maximum 2 hp
Indoor/Outdoor Usage Indoor; Outdoor
Mounting Style Surface
NEMA Enclosure Rating 3R
Number of Circuits 1
Number of Poles 1
Operating Temperature - Maximum 149 °F
Operating Temperature - Minimum -40 °F
Overall Depth 3-1/16 in
Overall Height 8-5/16 in
Overall Width 5-1/16 in
Series E
Standards UL 917; UL Listed
Time Setting - Maximum 24 hr
Time Setting - Minimum 1 min
Country of Origin China
